    CNC Blades Self Propelled Plate Edge Milling Machine Chamfering

    Ask Lasest Price
    Brand Name : wellnit
    Model Number : PB-60
    Certification : ISO9001
    Payment Terms : T/T
    Price : Negotiable
    Supply Ability : 100 sets for a mounth
    Delivery Time : within 7 days after received 100% payment
    • Product Details
    • Company Profile

    CNC Blades Self Propelled Plate Edge Milling Machine Chamfering

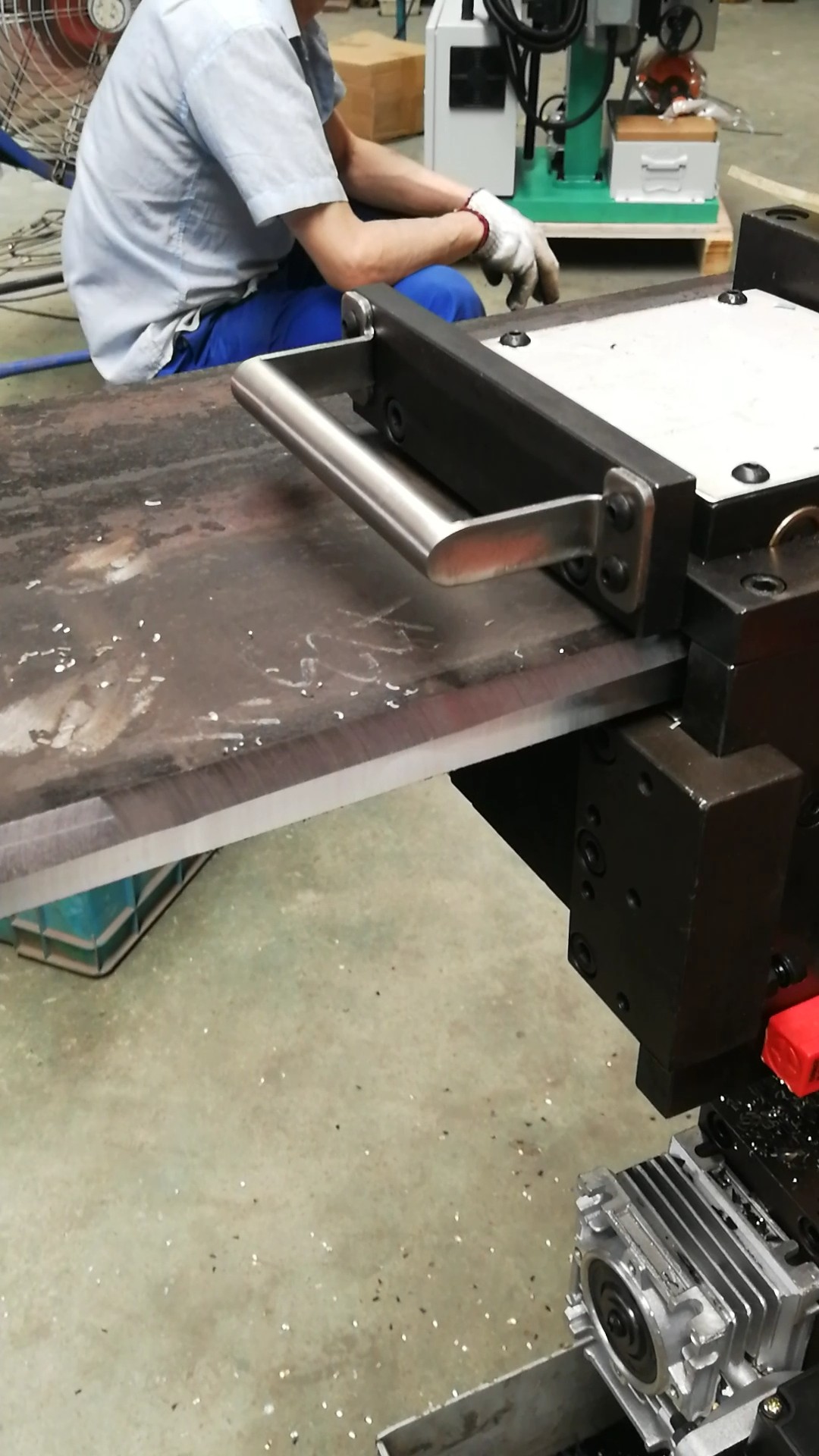

    PB-60 steel plate milling machine large steel plate beveling machine self-propelled automatic high-finish chamfering


    Main performance


    The PB-60 edge milling machine convenient movement and simple operation. The
    finish. of the bevel is as high as Ra3.2-6.3.It is suitable for small factories. The milling
    machine is equipped with commonly used CNC blades to make the customers use the
    cosl more cheaply.


    Product numberPB-60PB-60LPB-60RPB-80
    Bevel width1-45mm1-55mm10-55mm1-60mm
    Single bevel width1-15mm1-20mm10-15mm1-20mm

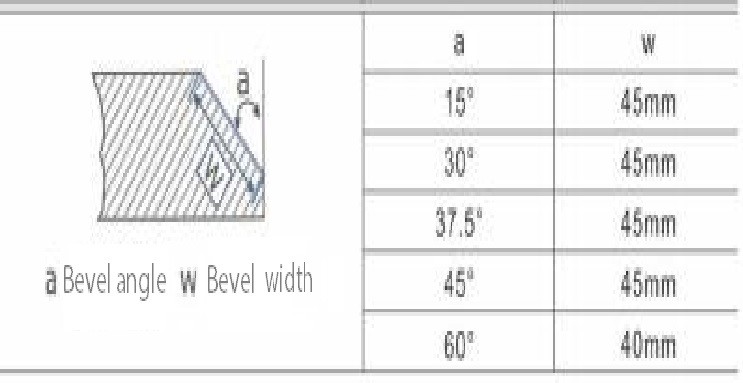

    Bevel angle10°-60°0°-90°

    10°-90°

    -10°-90°

    0°-60°
    Total motor power3400W3400W3400W4800W
    Spindle speed1050r/min1050r/min1050r/min750-1440r/min
    Clamping board width>100mm>80mm>100mm>100mm
    Feed rate0-1500r/min0-1500r/min0-1500r/min0-1500r/min
    Net weight of whole machine220KG220KG225KG270KG
    Voltage frequencyAC 380V 50HzAC 380V 50HzAC 380V 50HzAC 380V 50Hz
    Clamping steel plate thickness6-40mm6-60mm6-60mm6-60mm
    Processing steel plate length>300mm>300mm>300mm>300mm
    Height of worktable820-860mm820-860mm700-760mm820-860mm

    CNC Blades Self Propelled Plate Edge Milling Machine ChamferingCNC Blades Self Propelled Plate Edge Milling Machine ChamferingCNC Blades Self Propelled Plate Edge Milling Machine Chamfering
