M42 Insert Metal Tube Cold Beveling Machine Electric Driven

    Buy cheap M42 Insert Metal Tube Cold Beveling Machine Electric Driven from wholesalers

    Buy cheap M42 Insert Metal Tube Cold Beveling Machine Electric Driven from wholesalers
    • Buy cheap M42 Insert Metal Tube Cold Beveling Machine Electric Driven from wholesalers

    M42 Insert Metal Tube Cold Beveling Machine Electric Driven

    Ask Lasest Price
    Brand Name : wellnit
    Model Number : ISE-630-1
    Certification : ISO,CE
    Price :
    Payment Terms : L/C, T/T
    Supply Ability : 500sets per week
    Delivery Time : 3-7days
    • Product Details
    • Company Profile

    M42 Insert Metal Tube Cold Beveling Machine Electric Driven

    Pipe Cold beveling machine for heavy wall pipes


    Production Description


    Stainless Steel Copper Tube Chamfering Machine with the following advantages:

    • Lighter weight,minimal radial space,Easy to operate.
    • Driveing Type:Electric-ISE,Pneumatic-ISP.
    • Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
    • Angle:Beveling angle as per your required.
    • A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.

    Technical Parameter


    ModelWorking Range(ID-OD)Wall Thickness(mm)Rotation Speed(r/min)
    ISE-30ISM-30Φ18-301/2"-3/4"≤1550
    ISE-80ISM-80Φ28-891"-3"≤1555
    ISE-120ISM-120Φ40-12011/4"-4"≤1530
    ISE-159ISM-159Φ65-15921/2"-5'≤2035
    ISE-252-1ISM-252-1Φ80-2733"-10"≤2016
    ISE-252-2ISM-252-2Φ80-273≤7516
    ISE-352-1ISM-352-1Φ150-3566"-14"≤2014
    ISE-352-2ISM-352-2Φ150-356≤7514
    ISE-426-1ISE-426-1Φ273-42610"-16"≤2012
    ISE-426-2ISM-426-2Φ273-426≤7512
    ISE-630-1ISM-630-1Φ300-63012"-24"≤2010
    ISE-630-2ISM-630-2Φ300-630≤7510
    ISE-850-1ISM-850-1Φ490-85024"-34"≤209
    ISE-850-2ISM-850-2Φ490-850≤759

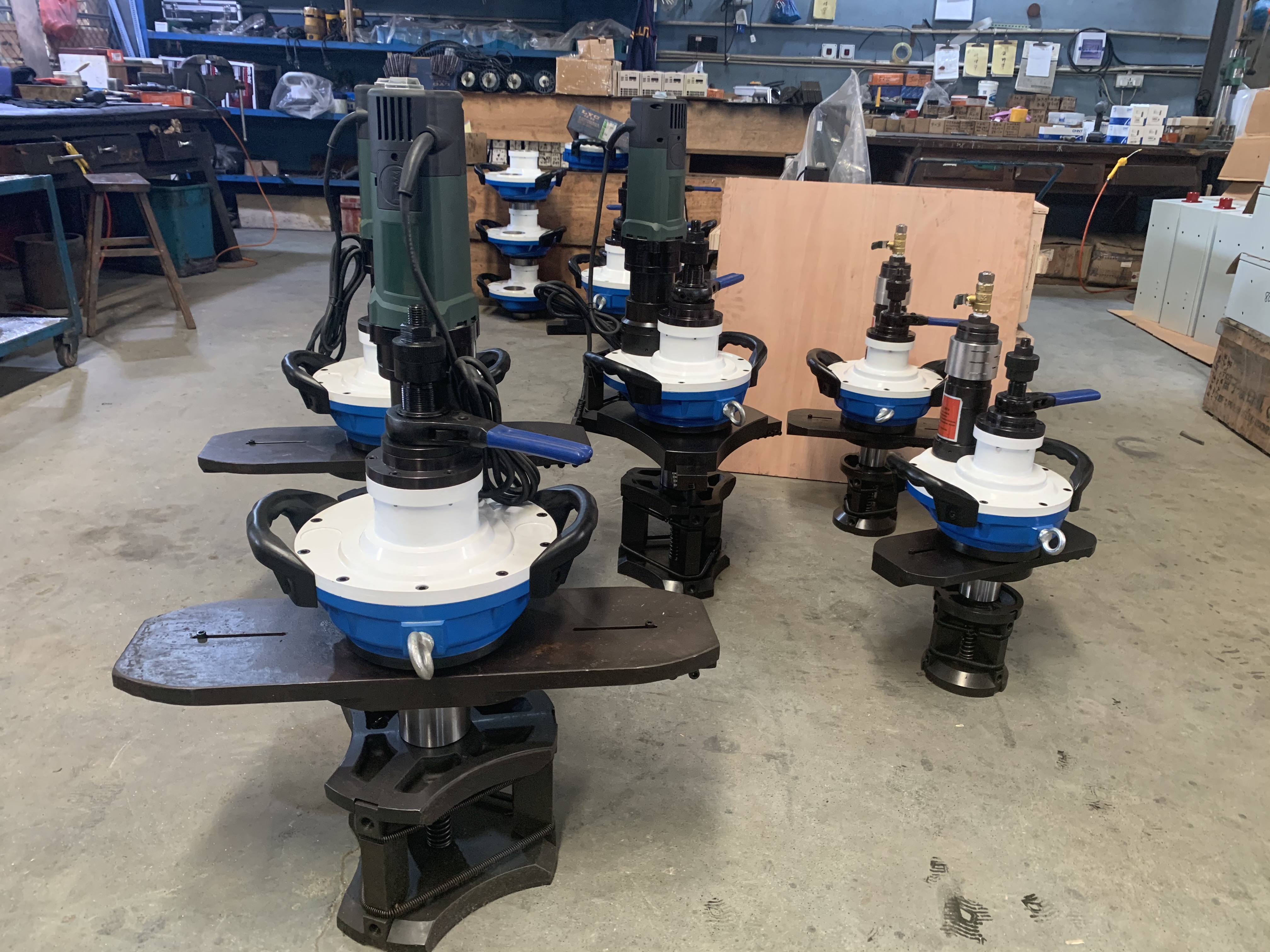

    Product Show




    Machine On-Site Ord


    Tools: Oide


    Certifications O


    Company Profile O

    Order Guide

    Before you place order to us, please let us know the following information:

    • Choose the right Model

    • Advise your pipe material ( Carbon steel, stainless steel or others)

    • Other special demands about machine

    • The spare parts needed

    • If the pipe wall thickness more than 30mm, inform us in advance (Important)

    • Confirm your electric power supply ( Voltage, frequency and phase)

    • Confirm the beveling angel required

    • Confirm the welding joint required (U, V, Double V or Compound preparation)
