Automatic Portable Horizontal Split frame CS Aluminum Body Pipe edge pneumatic electriccutter steel beveling cutting mac

Production Description

The series machine is ideal for all types of pipe cutting, beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall thicknesses and material.

Features:

• Cold Cutting and Beveling improves safety
• Cutting and Beveling simultaneous
• Split Frame: easy mounted on pipeline
• Tools feed automatically
• Fast, Precision, On-site Beveling
• Minimal Axial and Radial clearance
• Light weight and compact design
• Easy set-up & Operation

• Spcification:

• Model	Working Range (ID-OD)		Wall Thickness	Rotation Speed
  OCE-89	Φ25-89	3/4''-3''	≤35	42r/min
  OCE-159	Φ50-159	2''-5''	≤35	20r/min
  OCE-168	Φ50-168	2''-6''	≤35	18r/min
  OCE-230	Φ80-230	3''-8''	≤35	15r/min
  OCE-275	Φ125-275	5''-10''	≤35	14r/min
  OCE-305	Φ150-305	6''-10''	≤35	13r/min
  OCE-325	Φ168-325	6''-12''	≤35	13r/min
  OCE-377	Φ219-377	8''-14''	≤35	12r/min
  OCE-426	Φ273-426	10''-16''	≤35	12r/min
  OCE-457	Φ300-457	12''-18''	≤35	12r/min
  OCE-508	Φ355-508	14''-20''	≤35	12r/min
  OCE-560	Φ400-506	16''-22''	≤35	12r/min
  OCE-610	Φ457-610	18''-24''	≤35	11r/min
  OCE-630	Φ480-630	20''-24''	≤35	11r/min
  OCE-660	Φ508-660	20''-26''	≤35	11r/min
  OCE-715	Φ560-715	22''-28''	≤35	11r/min
  OCE-762	Φ600-762	24''-30''	≤35	11r/min
  OCE-830	Φ660-813	26''-32''	≤35	10r/min
  OCE-914	Φ762-914	30''-36''	≤35	10r/min
  OCE-1066	Φ914-1066	36''-42''	≤35	10r/min
  OCE-1230	Φ1066-1230	42''-48''	≤35	10r/min

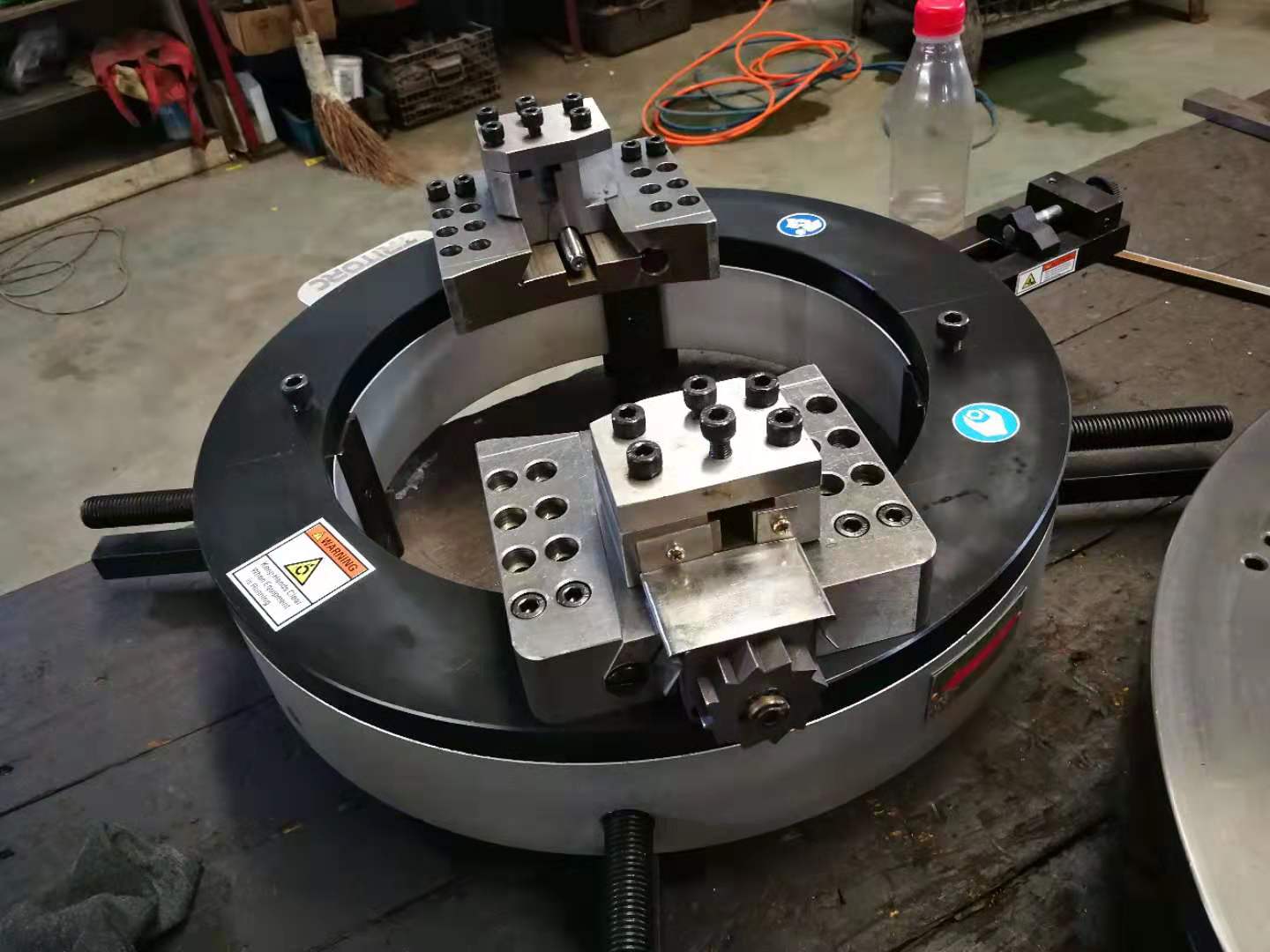

  Machine detail parts pictures:








  Tool spares:




• Machine on site:
•
•
• Order Guide

• Choose the right Model

• Confirm your electric power supply ( Voltage, frequency and phase)

• Confirm the beveling angel required

• Confirm the welding joint required (U, V, Double V or Compound preparation)

• Advise your pipe material ( Carbon steel, stainless steel or others)

• Other special demands about machine

• The spare parts needed

• If the pipe wall thickness more than 30mm, inform us in advance (Important).

•


• Packing box:

•




•

•
