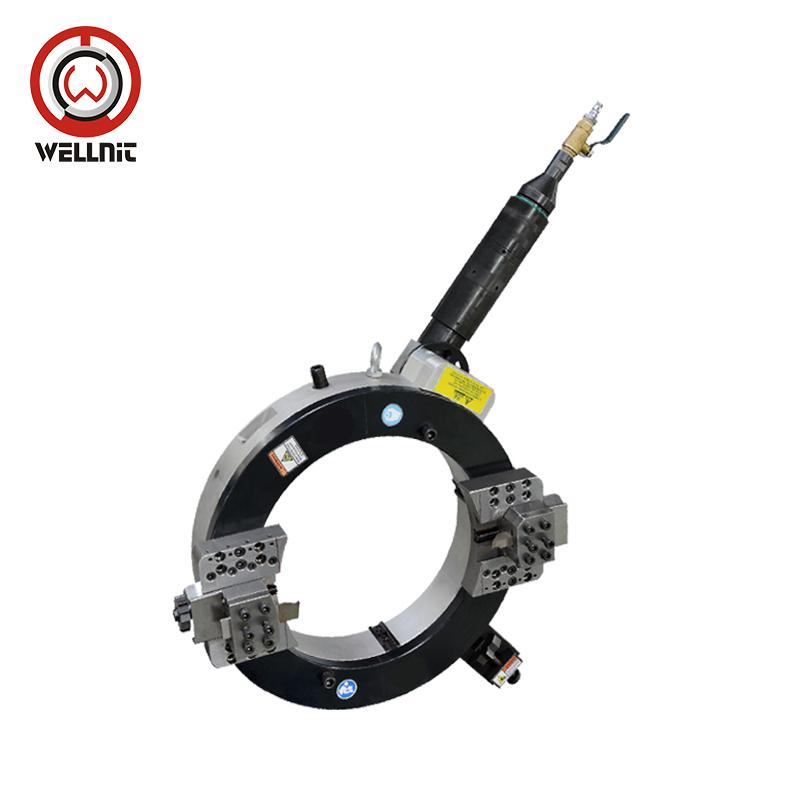

Automatic Portable orbital stainless steel pipe cutting machine pipe groove cutting beveling machine

Production Description:

This Series Are Split Frame Hydraulic Pipe Cutting And Beveling Machine with the following advantages:

• Lighter weight,minimal radial space,easy to operate.Can separate to two half
• Cold cutting only cutting,Only beveling, Cutting and beveling simultaneously
• Driveing Type:Electric-OEC,Pneumatic-OCP,Hydraulic-OCH,NC-OCS
• Especially used for cutting thick wall thickness,large processing quantity
• Heavy duty steel body and aluminum body,asjustable speed
• Angle:0°-45°(As your requiry)

Machine Features:

• Condition: New
• Place of Origin: Zhejiang, China (Mainland)
• Brand Name: Wellnit
• Model Number: OCP-914
• Voltage: 220-415V
• Rated Power: 12.5Mpa
• Dimension(L*W*H): 1155*675*510mm
• Weight: 196KGS
• Certification: ISO/CE
• Warranty: 1 Year
• After-sales Service Provided: Engineers available to service machinery overseas
• Mounting Method: Split OD Mount
• Motor: Pneumatic Motor
• Wall Thickness: ≤30mm
• Working Range: 30"-36"
• Air Pressure: 0.7-1MPa
• Air Consumption: 1500-2000L/min

• Tech data:

• Model	Working Range (ID-OD)		Wall Thickness	Rotation Speed
  OCE/ OCP-89	Φ25-89	3/4''-3''	≤35	42r/min
  OCE/ OCP-159	Φ50-159	2''-5''	≤35	20r/min
  OCE/ OCP-168	Φ50-168	2''-6''	≤35	18r/min
  OCE/ OCP-230	Φ80-230	3''-8''	≤35	15r/min
  OCE/ OCP-275	Φ125-275	5''-10''	≤35	14r/min
  OCE/ OCP-305	Φ150-305	6''-10''	≤35	13r/min
  OCE/ OCP-325	Φ168-325	6''-12''	≤35	13r/min
  OCE/ OCP-377	Φ219-377	8''-14''	≤35	12r/min
  OCE/ OCP-426	Φ273-426	10''-16''	≤35	12r/min
  OCE/ OCP-457	Φ300-457	12''-18''	≤35	12r/min
  OCE/ OCP-508	Φ355-508	14''-20''	≤35	12r/min
  OCE/ OCP-560	Φ400-506	16''-22''	≤35	12r/min
  OCE/ OCP-610	Φ457-610	18''-24''	≤35	11r/min
  OCE/ OCP-630	Φ480-630	20''-24''	≤35	11r/min
  OCE/ OCP-660	Φ508-660	20''-26''	≤35	11r/min
  OCE/ OCP-715	Φ560-715	22''-28''	≤35	11r/min
  OCE/ OCP-762	Φ600-762	24''-30''	≤35	11r/min
  OCE/ OCP-830	Φ660-813	26''-32''	≤35	10r/min
  OCE/ OCP-914	Φ762-914	30''-36''	≤35	10r/min
  OCE/ OCP-1066	Φ914-1066	36''-42''	≤35	10r/min
  OCE/ OCP-1230	Φ1066-1230	42''-48''	≤35	10r/min

Electric operation type:

Penumatic operation type:

Hydraulic operation type:

Machine detail parts pictures:

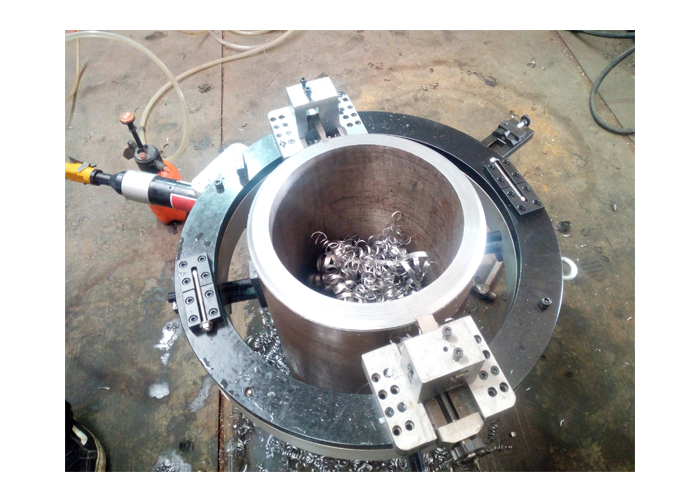

Machine on site :

• Packaging & Delivery

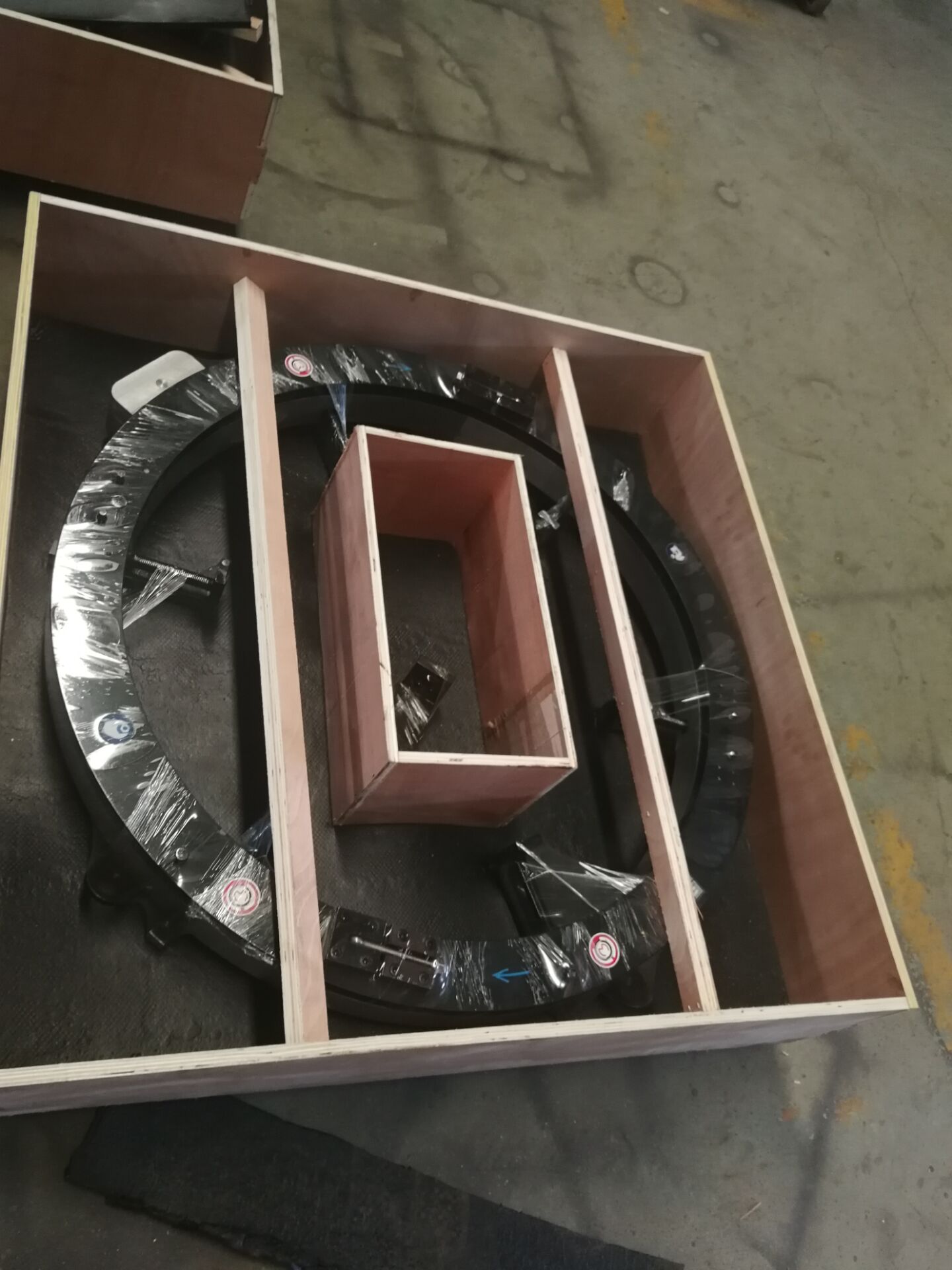

• Packaging Details	Shrink-wrapped machine body inside, exported standard wooden case outside. 1 set/ WELLNIT standard case.
  Delivery Time	Shipped in 3 days after payment

•

  Our fair :
•
• Our workshop:
•
• Our certification:
•

 Zhejiang Wellnit Mechanical Technology Co.,Ltd

     Zhejiang Wellnit Mechanical Technology Co., Ltd. is located in Binhai Economic and Technological Development Zone, Wenzhou, Zhejiang Pro.China. It is a modern high-tech enterprise integrating R&D, manufacturing, sales and service.

The company specializes in the production of electric, pneumatic, hydraulic, CNC and explosion-proof groove cutting equipment, steel plate groove equipment.

  The company adheres to the principle of “taking market demand as the guide, customer satisfaction as the goal, pioneering and innovation as the driving force,honesty and trustworthiness as the principle, quality and cheap as the pursuit”, and has won the domestic market with excellent quality and perfect service. The international market is highly praised and trusted by users. The company's top ten series of dozens of products have been exported to more than 60 countries and regions in Europe, America, Middle East, Southeast Asia, etc., obtained CE certification, and passed the ISO9001 international management system certification.

      The company has dozens of senior engineers, professional engineers, senior management, sales and development talents, advanced testing equipment and perfect testing methods, providing the most powerful support for product development, innovation, production and marketing, advanced management concepts. And a perfect service system to inject new vitality into the company.

      Products are widely used in petroleum, power, steel, chemical, shipbuilding, natural gas, nuclear industry, pressure vessels and other industries, pipelines, power engineering installation and repair. For example, the West-East Gas Pipeline and the South-to-North Water Transfer have achieved significant production efficiency and economic benefits.
