stainless steel Pipe Cutting Beveling Machine High Precision

Website : http://www.wellnit.com

Product Performance

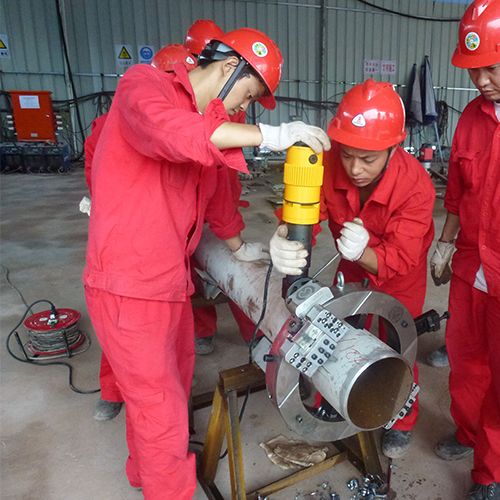

The series machine is ideal for all types of pipe cutting ,beveling and end preparation. The split frame design allows the machine to split in half at the frame and mount around the OD of the in line pipe or fitting for strong , stable clamping. The equipment performs precision in-line cut or simultaneous cut/bevel, single cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 1 to 56 inches O.D(DN 25 – 1430mm), On most wall thickness and material.

Machine Body

Steel Body

Both Rotary ring and Stationary ring made by steel.

This is the traditional china material. A little heavier for on site machine. But Rigidity is very good, idea for heavy walled pipe.

Aluminum Alloy Body

This is our new machine,stationary ring made by aluminum.

Steel where strength is needed,aluminum where strength is less critical than weight.

Lightweight makes more convenient for operator.

Tool Holder Choose

Name	Picture
Standard Tool Slide achieve cut/bevel up to 30mm
Heavy wall Tool Slide achieve cut/bevel up to 70mm
Bridge Tool Slide achieve cut/bevel up to 100mm in multi passes, also can process flange facing
Tracking Tool Slide O.D tracking slide compensate for out of round pipe travel along the O.D makes the bevel face balanced usually apply on large size diameter pipe

Bevel Type

Specification

Order Guide

• pipe size (O.D) :
• pipe thickenss :
• pipe material :

I will recommend suitable machine for you!

 Zhejiang Wellnit Mechanical Technology Co.,Ltd

     Zhejiang Wellnit Mechanical Technology Co., Ltd. is located in Binhai Economic and Technological Development Zone, Wenzhou, Zhejiang Pro.China. It is a modern high-tech enterprise integrating R&D, manufacturing, sales and service.

The company specializes in the production of electric, pneumatic, hydraulic, CNC and explosion-proof groove cutting equipment, steel plate groove equipment.

  The company adheres to the principle of “taking market demand as the guide, customer satisfaction as the goal, pioneering and innovation as the driving force,honesty and trustworthiness as the principle, quality and cheap as the pursuit”, and has won the domestic market with excellent quality and perfect service. The international market is highly praised and trusted by users. The company's top ten series of dozens of products have been exported to more than 60 countries and regions in Europe, America, Middle East, Southeast Asia, etc., obtained CE certification, and passed the ISO9001 international management system certification.

      The company has dozens of senior engineers, professional engineers, senior management, sales and development talents, advanced testing equipment and perfect testing methods, providing the most powerful support for product development, innovation, production and marketing, advanced management concepts. And a perfect service system to inject new vitality into the company.

      Products are widely used in petroleum, power, steel, chemical, shipbuilding, natural gas, nuclear industry, pressure vessels and other industries, pipelines, power engineering installation and repair. For example, the West-East Gas Pipeline and the South-to-North Water Transfer have achieved significant production efficiency and economic benefits.
