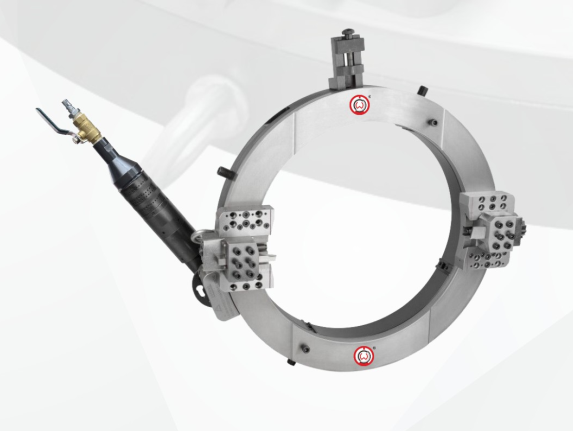

Split frame Pneumatic Pipe Cutting Beveling Machine Heavy thickness

Product Performance

Pipe cutting and beveling machine is high efficiency machine.Machine can cutting and beveeling at same time. Automatic Feed , one worker can operation servel machine at same time.Cold process , can't effect pipe material , after bevel , the surface is very smoothly,don't need pickling , can weld directly.Flaw detection quality very good. the machine can widely used in the fields of petroleum,chemical,natural gas,power supply construction,boiler and nuclear power,such as the project of west gas transporting to east china.

Pneumatic Driven

Air Motor Specification:

Rotation Speed:220r/min

Torque:115NM

Power:3.5HP

Air Pressure : 0.8-1.0Mpa

Air Consumption:1000-2000L/min

Advantage

Explosion Proof

Stable Performance

Simple Structure make easy to maintenace

Occasionally overload won't break

Tool Holder Choose

Name	Picture
Standard Tool Slide achieve cut/bevel up to 30mm
Heavy wall Tool Slide achieve cut/bevel up to 70mm
Bridge Tool Slide achieve cut/bevel up to 100mm in multi passes, also can process flange facing
Tracking Tool Slide O.D tracking slide compensate for out of round pipe travel along the O.D makes the bevel face balanced usually apply on large size diameter pipe

Function of Products

• small working radius , suitable for any different working condition.
• compact design, light weight ,easy to operation
• Can cutting and beveling at same time.
• Can separate to two half, suitable for pipe when two end can’t open.
• The tool not only can process carbon steel , stainless steel and alloy pipe.
• Bevel Type: “V” ;“U” ; “J” ; compound bevel ; counter boring etc.
• Pneumatic Driven, More stable performance , Explosion Proof.

Bevel Type


Specification

Order Guide

• pipe size (O.D) :
• pipe thickenss :
• pipe material :

I will recommend suitable machine for you!
