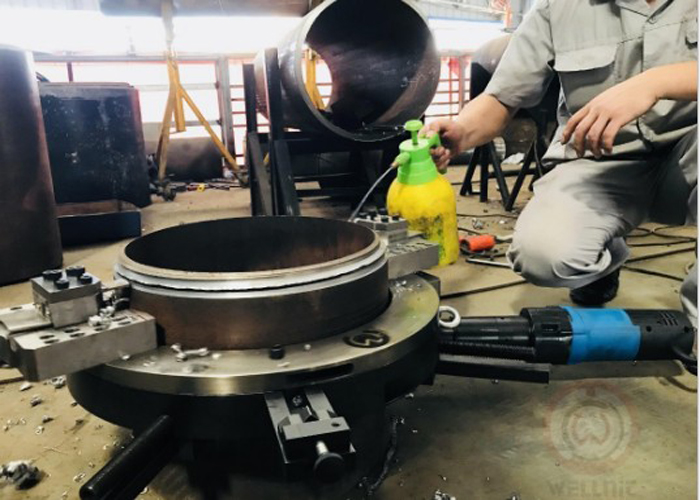

Chuck type(HIgh-Efficiency)
self-centering Cutting and beveling machine
Adopt high strength &precision spilt frame ring structure,apply
for cut and bevel work for different pipe,especially for batch
working of cutting and beveling,get the high efficency.
Various of driven options:pneumatic,electric or hydraulic.
Self-centering,no need adjust the concentricity & perpendicularity
manually. Four clamp install synchronously and high effect.
New clamping type,save the step of replace expending block.
Adopt new synchronous feeding uniformity,tool bits has longer
working life,tool bits has longer working life.
Easy set-up,operation and maintain.
Cutting & beveling finished at same time,high working effective.
Cold working,no speak ,won’t make the material affected.
Perfect working precision,no burrs
Well-adapted,install split,you can make the speed adjust depend on
the working conditions.
Features
1) Compact structure, designed to bevel the pipe in the narrow space.
2) Pipe Out-mounted , self centering, secured clamping, easy to
operate.
3) Aluminum body, light weight, suitable for working aloft.
4) High quality beveling tool, can process different grades of carbon
steels, alloyed steel, stainless steel and so on.
5) More choice for the driven model, electric or pneumatic, widely
application.
6) Using fields: Pipe end beveling process of water pipe, heater
boiler and thermal power plant
Machine advantages:
OD-Mounted
Light weight
Ajustable speed
Compact design, good rigidity
Tool feed/back automatically
Original German METABO motor
Ingenious centering device, easy for process various of pipe size
Technical Parameter
Electric: Driven by low-energy consumption electric motor 110V or 220V
optional, 50-60Hz
Pneumatic: Driven by pneumatic motor, Air working pressure: 0.6-0.8Mpa,
1300W,Air Consuming flux:950-1500L/min
Specification:
| SOCE-168 | 50-168mm | 2-6" | ≤30 | 18r/min | |
| SOCE-230 | 80-230 | 3-8 | ≤30 | 15r/min | |
| SOCE-275 | 125-275 | 5-10 | ≤30 | 14r/min | |
| SOCE-305 | 150-305 | 6-10 | ≤30 | 13r/min | |
| SOCE-325 | 168-325 | 6-12 | ≤30 | 13r/min | |
| SOCE-377 | 219-377 | 8-14 | ≤30 | 12r/min | |
| SOCE-426 | 273-426 | 10-16 | ≤30 | 12r/min | |
| SOCE-457 | 300-457 | 12-18 | ≤30 | 12r/min | |
| SOCE-508 | 355-508 | 14-20 | ≤30 | 12r/min | |
| SOCE-610 | 457-610 | 18-24 | ≤30 | 12r/min | |
| | | | | |
FAQ
1) Question: How to choose a suitable model?
RE: Before choose the model,we need to know more details about the
pipe,such as the I.D,O.D,wall thickness,the material of the pipe
and the enviroment of the site and the requirement of the end face.
Then it will be more convient for all of us to make an immediately
decision .Thanks!
2) Question: Do you have another choice about the driven?
RE: Of course,we have widely variety of choices for you, such as the
electric,pneumatic,hydraulic and NC.
3) Question: About the type of the beveling?
RE: The normally type is the v and U,if you have any special
requirement, please let us know it, i believe that our engineer can
provide a solution for you.

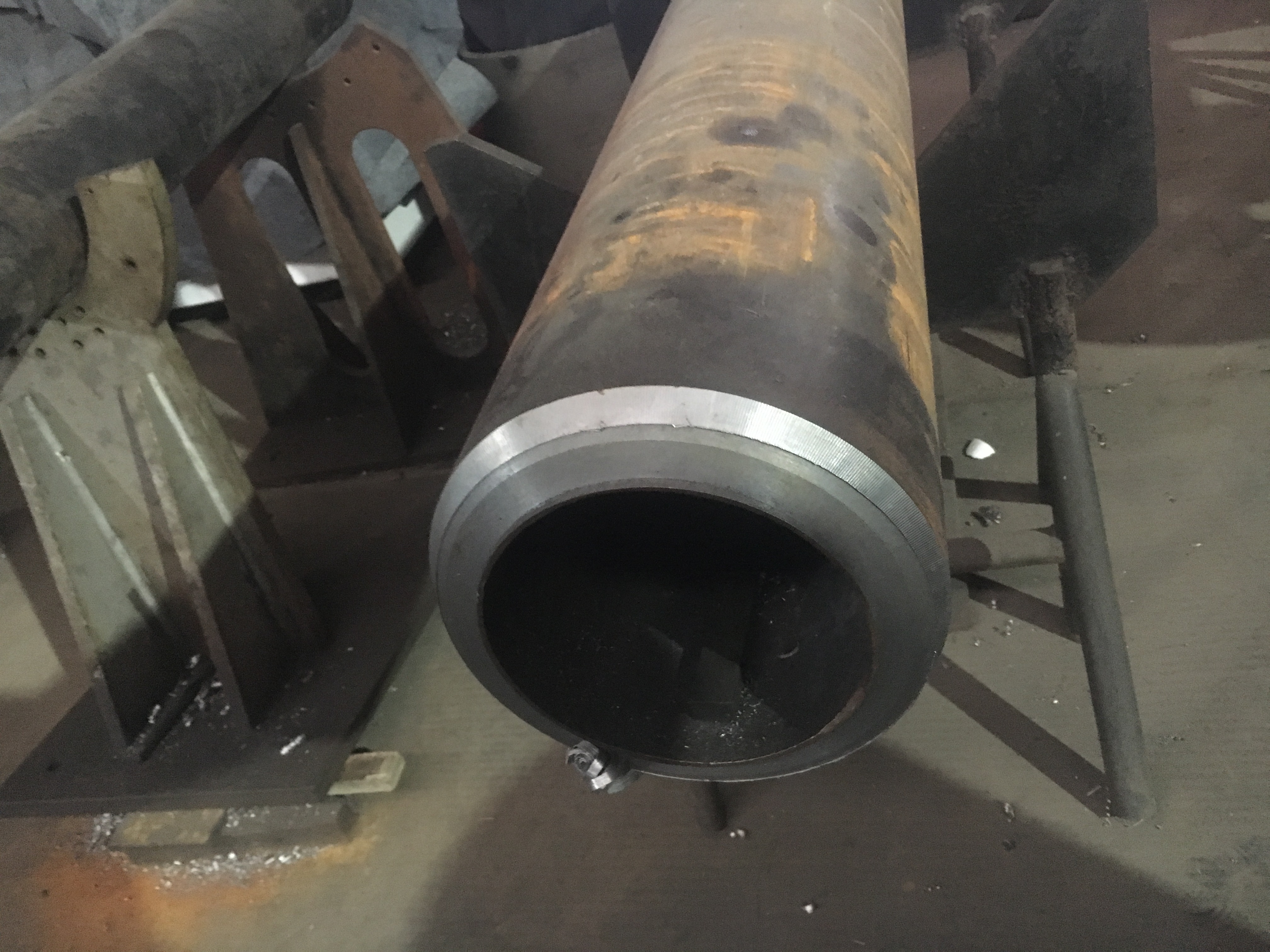

PROCESS RESULT
Our fair:
Order guider:
Before you place order to us, please let us know the following
information:
Choose the right Model
Confirm your electric power supply ( Voltage, frequency and phase)
Confirm the beveling angel required
Confirm the welding joint required (U, V, Double V or Compound
preparation)
Advise your pipe material ( Carbon steel, stainless steel or
others)
Other special demands about machine
The spare parts needed
