    Feed Automatical Electric Pipe Beveling Machine , Cold Cutting Chamfering Machine

    Ask Lasest Price
    Brand Name : Wellnit
    Model Number : OCP-457
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 300set /month
    Delivery Time : with 7 days
    • Product Details
    • Company Profile

    Feed Automatical Electric Pipe Beveling Machine , Cold Cutting Chamfering Machine

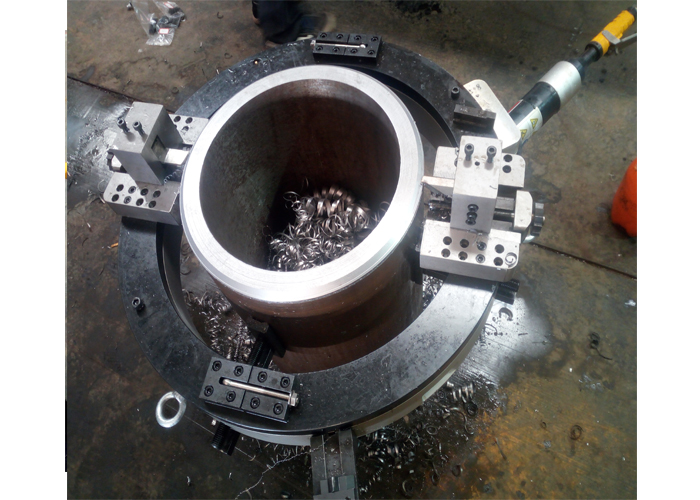

    Feed Automatical OD-Mounted Clamshell Cold Cutting Chamfering Machine Split Frame Portable


    Machine Description :


    • Pipe Outside Mounted series machine is ideal for all types of pipe cutting, beveling and end preparation.
    • The split frame design allows the machine to split in half at the frame and mount around the OD of the in-line pipe or fittings for strong, stable clamping.
    • The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end preparation on open ended pipe,
    • Working Ranging from 3/4" to 56 inches O.D.(DN20-1400), on most wall thicknesses and material.

    Advantages:

    • Cold Cutting and Beveling improves safety
    • Cutting and Beveling simultaneous
    • Split Frame: easy mounted on pipeline
    • Tools feed automatically
    • Fast, Precision, On-site Beveling
    • Minimal Axial and Radial clearance
    • Light weight and compact design
    • Easy set-up & Operation
    • Electric or Pneumatic or Hydraulic driven
    • Machining heavy-wall pipe from 3/4” up to 56”

    Different Types operation machine:


    Electric,Penumatic ,Hydraulic power pack,CNC


    Electric type operation machine:

    Power supply:

    220-240V,1PH 50/60Hz

    1.5-2KW

    Penumatic type operation machine:

    Power supply:

    0.8-1.0Mpa

    1000-2000L/min


    Hydraulic type operation machine:

    Power supply:

    380V 3PH 50-60HZ,

    10Mpa,25L/Min


    CNC type operation machine:

    Power supply:

    220-380V,50-60HZ

    16NM,0-30R/MIN

    1.5-4KW


    Main Characteristic:

    • Powerful drive, high efficiency
    • Stable performance
    • Low noise adjustable speed
    • Ideal for heavy wall and large size pipe
    • Lower axial and radial clearance
    • Cold cutting and beveling , No spark
    • Easy to set up , Robust operation
    • Automatic feed, high efficiency
    • Can sperate to two half , it's easy for pipe when two end can't open
    • Process carbon steel , stainless steel , aluminum alloy , alloy steel etc

    Tech date sheet:

    OD-Mounted Hydraulie Type :

    ModelWorking Range (ID-OD)InchWall ThicknessRotation Speed
    OCP-89Φ25-893/4''-3''≤35100r/min
    OCP-159Φ50-1592''-5''≤7096r/min
    OCP-168Φ50-1682''-6''≤7090r/min
    OCP-230Φ80-2303''-8''≤7085r/min
    OCP-275Φ125-2755''-10''≤7080r/min
    OCP-305Φ150-3056''-10''≤7073r/min
    OCP-325Φ168-3256''-12''≤7070r/min
    OCP-377Φ219-3778''-14''≤7062r/min
    OCP-426Φ273-42610''-16''≤7058r/min
    OCP-457Φ300-45712''-18''≤7055r/min
    OCP-508Φ355-50814''-20'≤7052r/min
    OCP-560Φ400-56016''-22''≤7052r/min
    OCP-610Φ457-61018''-24''≤7050r/min
    OCP-630Φ480-63020''-24''≤7050r/min
    OCP-660Φ508-66020''-26''≤7050r/min
    OCP-715Φ560-71522''-28''≤7048r/min
    OCP-762Φ600-76224''-30''≤7048r/min
    OCP-830Φ660-81326''-32''≤7045r/min
    OCP-914Φ762-91430''-36''≤7041r/min
    OCP-1066Φ914-106636''-42'≤7032r/min
    OCP-1230Φ1066-123042''-48''≤7030r/min
    OCP-1430Φ1230-143048''-56''≤7028r/min


    COMPANY INTRODUCTION:


    Zhejiang Wellnit Mechanical Technology Co.,Ltd (Original:Wenzhou Huakai Co.,Ltd)is a professional manufacture and exporter that is concerned with the design,development and production of pipe cutting and beveling machine,portable plate beveling machine.

    we have recieved ISO9001:2008,CE certificates etc.

    The products include :

    1. O.D. mounted light & heavy-duty pipe cutting and beveling machine,
    2. I.D. mounted pipe beveling machine,
    3. portable plate beveling machine.
    4. flange facing machines.
    5. LINE-boring
    6. Hot gac cutting machine
    7. Plate chamfering machine

    We are dedicate to continuing the spirit of innovation , manufacturing excellence, enthusiastic work force and the superb after sale service ,we are confident our future will be more and more successful.

    To be honest, pioneer and enterprising, seek for truth and innovation" is our credo.

    And "Your satisfaction is our great success"

    Machine on site:

    ORDER GUIDE


    Please provide more details about your pipe:

    • Pipe size (Outside Diameter)
    • Pipe thickness
    • Pipe material
    • Machine body: Steel or Aluminum Alloy
    • Driven: Electric , Pnuematic , Hydraulic , Servo Motor
    • Bevel angle
    • Bevel type
    • Drawing

    We will recommend suitable machine to you!
