    Cold Pipe Cutting And Beveling Machine

    Ask Lasest Price
    Brand Name : Wellnit
    Model Number : OC
    Certification : ISO9001
    Price : $3000/set
    Payment Terms : T/T
    Supply Ability : 40 sets per month
    Delivery Time : within 7 days
    • Product Details
    • Company Profile

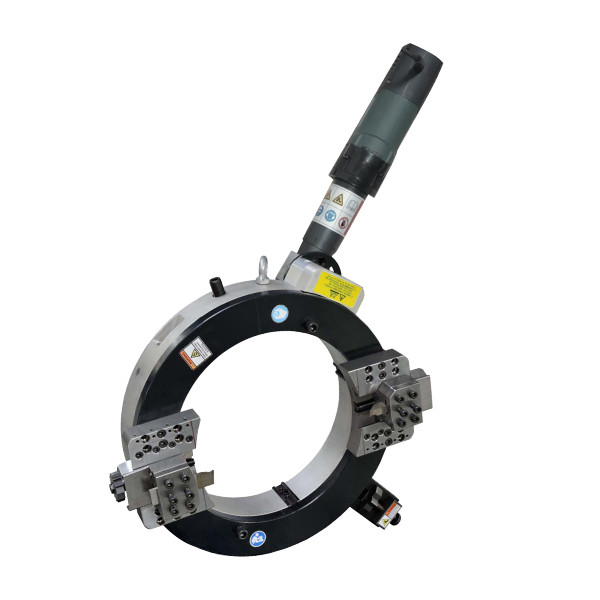

    Cold Pipe Cutting And Beveling Machine

    Explosion Proof pipe cutting and beveling machine more stable


    Function:


    1. Simple installation and fast operation;
    2. It is applicable to various kinds of materials processing, and available to a wide range of pipe diameter;
    3. As it adopts mechanical cutting groove method for cold working, it can maintain well mechanical properties of the material quality.
    4. Ideal pipe end preparation with various shapes as flat, V, X, and U shape can meet different technological requirements for butt welding.


    Specification:


    Electric:

    Convenient power supply
    Stable Performance
    Popular choice
    Electric requirement:220/240V 1PH 50/60HZ
    Motor Power :1.8-2.0KW

    Pneumatic:

    Explosion Proof
    Stable Performance
    Easy to maintenance
    Air requirement:2000L/min @1.0Mpa
    Double motor for big model or heavy duty

    Hydraulic:

    Powerful drive, High efficiency
    Stable Performance, Low noise
    Ideal for heavy wall thickness & large size pipe
    Power:5.5KW
    Voltage Supply: 380V 3PH 50/60Hz
    Rated Pressure:10MPa
    Rated flow:5-30L/min

    Open Way: Manual / Remote control

    Oil line lenth :6 meters

    Servo Motor:

    Powerful drive, High efficiency
    Low noise ,Stable Performance
    Ideal for heavy wall thickness & large size pipe
    Electric Power: 220V 1PH 50/60Hz;
    Power:2.3KW

    Rotation Speed : 0-20r/min

    stepless regulation



    BEVELING SHAPE

    *other beveling shape, angle and pipe material, please declare before order

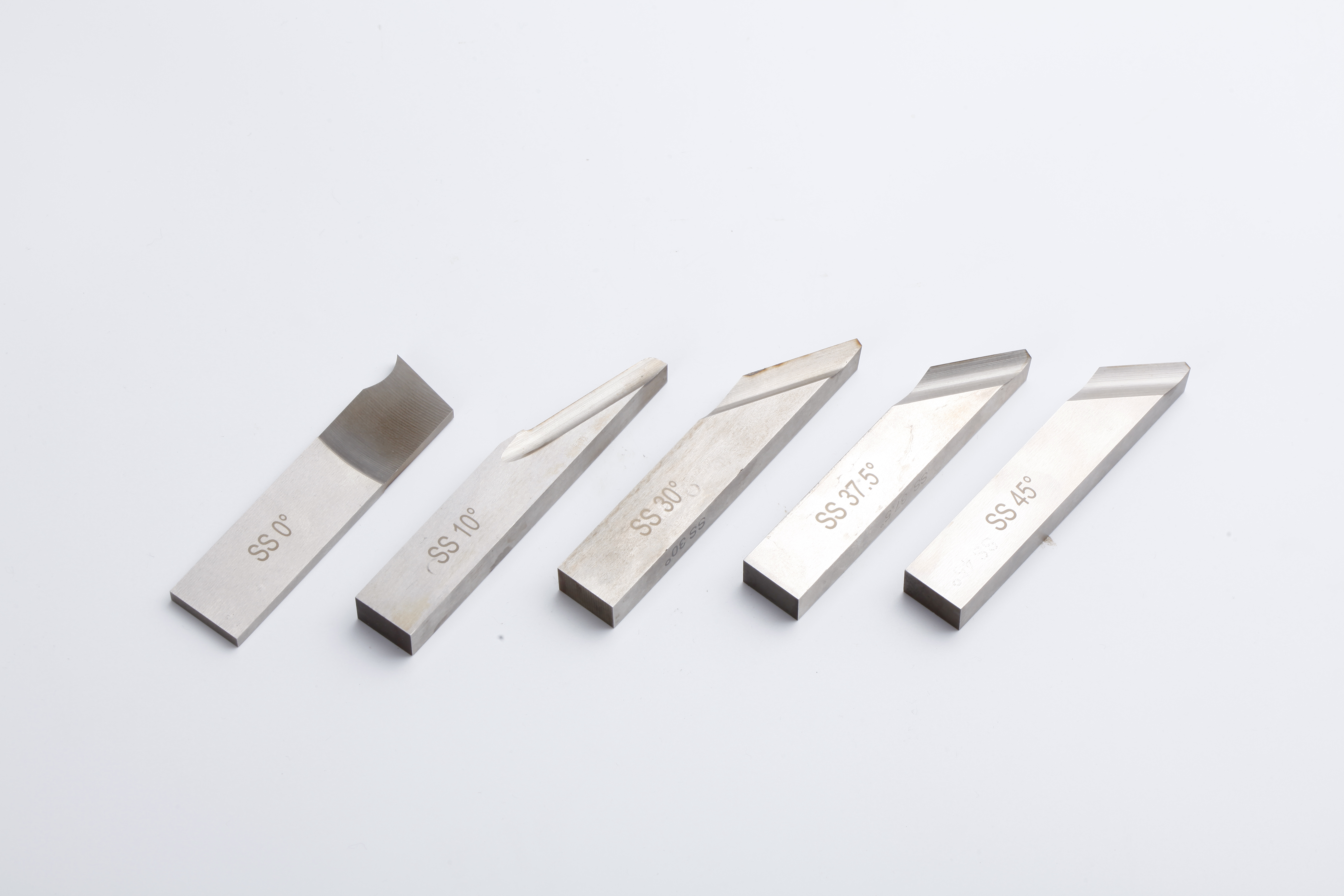

    TOOLINGS

    Material:M42
    Type:cut,bevel,double bevel,
    compound bevel,counterbore
    Angle:0°,30°,37.5°,
    Double 30°,37.5°+10°

    Before you place order to us, please let us know the following information:

    *Choose the right Model


    *Confirm your electric power supply ( Voltage, frequency and phase)


    *Confirm the beveling angel required


    *Confirm the welding joint required (U, V, Double V or Compound preparation)


    *Advise your pipe material ( Carbon steel, stainless steel or others)


    *Other special demands about machine


    *The spare parts needed


    *If the pipe wall thickness more than 30mm, inform us in advance (Important)
