    Penumatic Beveling Machine For Beveling Tube Deburring 3 Inch - 10 Inch

    Ask Lasest Price
    Brand Name : WELLNIT
    Model Number : ISP/ISE -252-1
    Certification : ISO,CE
    Price : USD860 SET
    • Product Details
    • Company Profile

    Penumatic Beveling Machine For Beveling Tube Deburring 3 Inch - 10 Inch

    ISE / ISP stainless steel tube polishing Machine


    Product Description

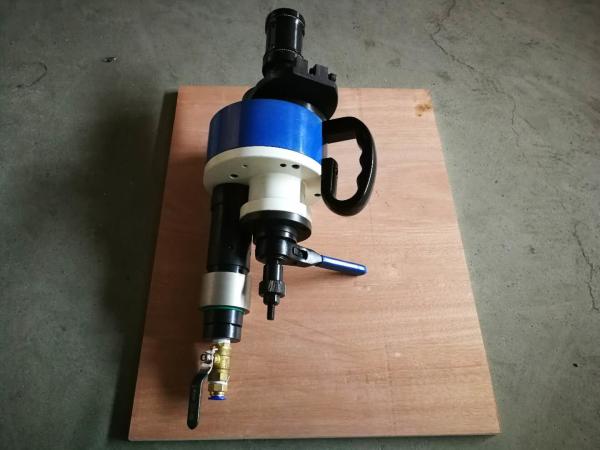

    ISP Series is ID-Mounted pipe beveling machine. With the advantages: Easy operation, Light Weight, Adraw nut is tightened, Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. It's can work with various material pipe, beveling angle as per your required. This machine could driven by both Electric and Pneumatic.


    Below Technical Specifications for Electry Type Steel Pipe Beveling Machines for Steel Pipe Beveling :


    ModelWorking Range (ID-OD)Wall ThicknessRotation Speed
    ISE-30Φ18-301/2''-3/4''≤1550r/min
    ISE--80Φ28-891''-3''≤1555r/min
    ISE--120Φ40-1201 1/4''-4''≤1530r/min
    ISE--159Φ65-1592 1/2''-5''≤2035r/min
    ISE--252-1Φ80-2733''-10''≤2016r/min
    ISE--252-2Φ80-273≤7516r/min
    ISE--352-1Φ150-3566''-14''≤2014r/min
    ISE--352-2Φ150-356≤7514r/min
    ISE--426-1Φ273-42610''-16''≤2012r/min
    ISE--426-2Φ273-426≤7512r/min
    ISE--630-1Φ300-63012''-24''≤2010r/min
    ISE--630-2Φ300-630≤7510r/min
    ISE--850-1Φ490-85024''-34''≤209r/min
    ISE--850-2Φ490-850≤759r/min

    Below Technical Specifications for Pneumatic Type stainless steel tube polishing Machine :

    ModelWorking Range (ID-OD)Wall ThicknessRotation SpeedAir pressureAir Consumption
    ISP-30Φ18-301/2''-3/4''≤1560r/min0.6MPa900 L/min
    ISP--80Φ28-891''-3''≤1550r/min0.6MPa900 L/min
    ISP--120Φ40-1201 1/4''-4''≤1538r/min0.6MPa900 L/min
    ISP--159Φ65-1592 1/2''-5''≤2035r/min0.6MPa1000 L/min
    ISP--252-1Φ80-2733''-10''≤2016r/min0.6MPa1000 L/min
    ISP--252-2Φ80-273≤7516r/min0.6MPa1000 L/min
    ISP--352-1Φ150-3566''-14''≤2014r/min0.6MPa1200 L/min
    ISP--352-2Φ150-356≤7514r/min0.6MPa1200 L/min
    ISP--426-1Φ273-42610''-16''≤2012r/min0.7MPa1500 L/min
    ISP--426-2Φ273-426≤7512r/min0.7MPa1500 L/min
    ISP--630-1Φ300-63012''-24''≤2010r/min0.7MPa1500 L/min
    ISP--630-2Φ300-630≤7510r/min0.7MPa1500 L/min
    ISP--850-1Φ490-85024''-34''≤209r/min0.7MPa1500 L/min
    ISP--850-2Φ490-850≤759r/min0.7MPa1500 L/min

    Our Machine operation types for your choice as bellowing:


    OCE :Electric


    OCP :Pneumatic


    OCH : hydraulic station


    OCM :driven is Metabo
