inside mounted Portable pipe cold groove machine manual process

The main of performance

This series of products is specially designed for metal pipe.It is internal mounted and it has a small working radius, which is suitable for a narrow working situation.The machine is manual operated and the machine feed by rotating the ratchet handle. The operation is simple and the processing speed is fastly. The grooved surface after processing is smoothly. Suitable for heat exchangers, pipes, boilers, etc.

The function of Product

The specification of product

ISE mean that driven is Electric

ISP mean that driven is Pneumatic

Pnuematic driven need meet air requirements.

Power supply:0.6-0.8MPa

Air consumption:650-1000L/Min

ISM mean that driven is Metabo(Germany import with overload protect)

Different Model that Working Range is different.

The Opeation general steps as follows:

1.Measure pipe size(I.D),choose suitable block and install.

2.put machine in the pipe,fixed the machine

3.install the tools

4.start to process

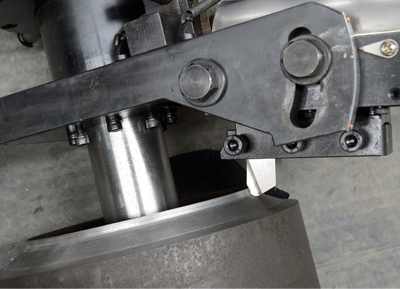

In the picture, the machine is pipe beveling machine Type II ,the max wall thickness can up to 75mm.

you can use one degree beveling tool , then process different degree bevel. (0-45degree)

We are manufacturers, we have professional engineers,

you provide processing requirements and drawings,

we will customize products for you to meet your needs.

We also can video with you,let our engineers teach you how to use machine.

Before place order ,please provide more details about your pipe,

We will recommend suitable machine to you.

1.PIPE SIZE (I.D):

2.PIPE THICKNESS:

3.PIPE MATERIAL:

4.DRIVEN:
