    Heat Exchanger Flange Facing Machine Portable Seal Groove Flange Facer

    Ask Lasest Price
    Brand Name : WELLNIT
    Model Number : WFS-1000
    Certification : CE ISO
    Price : USD20000/SET
    Payment Terms : D/A, D/P, Western Union, MoneyGram, D/P
    Supply Ability : 1000sets/year
    Delivery Time : 3days
    • Product Details
    • Company Profile

    Heat Exchanger Flange Facing Machine Portable Seal Groove Flange Facer

    Heat Exchanger Flange Facing Machine Portable Seal Groove Flange Facer


    Production Description


    Flange, or flange plate, which means the symmetrical plate structure used to connect pipes,
    vessels or fixed shaft mechanical parts, usually with bolt and thread structure for fixation.

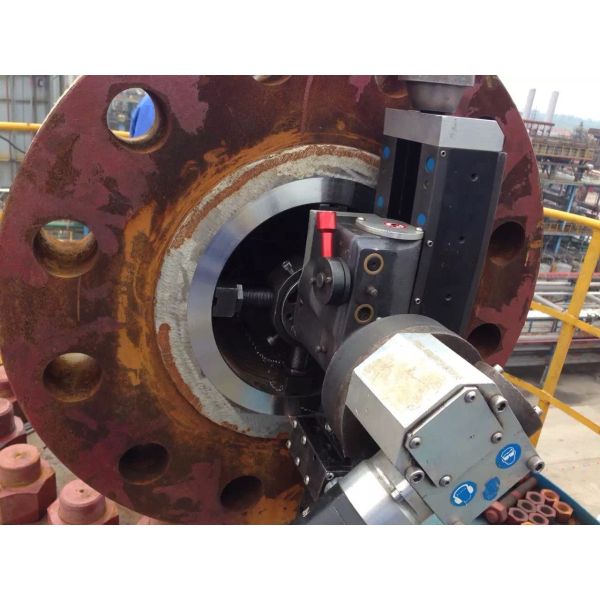

    The Portable Flange Facer Machine is a kind of machining machine, which can repair the flange surface,
    prolong the service life of the machine and reduce the industrial cost.

    Machine Specification
    Model
    610
    1000
    1650
    2000
    3000
    Facing Range (O.D)mm
    50-610
    153-1000
    500-1650
    762-2000
    1150-3000
    Mounting Range (I.D)mm
    50-508
    145-813
    500-1500
    604-1830
    1120-2800
    Tool Feed
    Stroke mm
    50
    102
    102
    102
    102
    Tool holder
    Swivel Angle
    +-30°
    +-30°
    +-30°
    +-360°
    +-360°
    Rotation Speed r/min
    0-42
    0-33
    0-22
    0-20
    3-12

    • Compact Structure,Light Weight,Easy to carry

    • Have scale of feed handwheel,improve feed accuracy

    • Automatic feeding in the axial direction and the radial direction,high efficiency

    • Horizontal,vertical,inverted,tilt etc,any direction both can processed

    • Can process flat face,water line,continous groove,RTJ groove etc

    • Storage/shipping box

    • CE certificate


    Product Details

    Heat Exchanger Flange Facing Machine Portable Seal Groove Flange FacerHeat Exchanger Flange Facing Machine Portable Seal Groove Flange FacerHeat Exchanger Flange Facing Machine Portable Seal Groove Flange FacerHeat Exchanger Flange Facing Machine Portable Seal Groove Flange FacerHeat Exchanger Flange Facing Machine Portable Seal Groove Flange FacerHeat Exchanger Flange Facing Machine Portable Seal Groove Flange Facer



    Packing & Shipping



    Exhibition


    Why Choose us


    1.Rich experience and reliable quality WELLNIT has a history of more than 20 years since its establishment. It has accumulated rich product experience, established excellent R & D and quality control teams. With excellent quality and good service, our customers have now spread over more than 50 countries and regions around the world.

    2.High cost performance
    The lowest price is not our goal. Providing cost-effective products and satisfactory services is the sincere return to customers. We will earn a little less than our competitor, and let our customers benefit a little! Help customers to reduce costs and provide more product and market support!
    3.Perfect service system Product service diversification, efficient sales team to provide you with detailed pre-sales consulting; professional technical team to provide you with the best solution to solve technical problems quickly. Our company has established long-term and stable cooperation with many famous logistics enterprises, and will provide you with fast, safe and comfortable logistics services.

    Order Guide

    Before you place order to us, please let us know the following information:

    • Choose the right Model

    • Confirm your e

    • lectric power supply ( Voltage, frequency and phase)

    • Confirm the beveling angel required

    • Confirm the welding joint required (U, V, Double V or Compound preparation)

    • Advise your pipe material ( Carbon steel, stainless steel or others)

    • Other special demands about machine

    • The spare parts needed

    • If the pipe wall thickness more than 30mm, inform us in advance (Important)
