    ID Mount Automatic Feed Flange Facing Machine For Wind Power Plant

    Ask Lasest Price
    Brand Name : Wellnit
    Model Number : WFS-1000
    Certification : ISO9001
    Price : $8000
    Payment Terms : T/T,
    Supply Ability : 1 sets / week
    Delivery Time : within 7days
    • Product Details
    • Company Profile

    ID Mount Automatic Feed Flange Facing Machine For Wind Power Plant

    Valve Flange Portable Miller water line process flange facer


    machine introduce

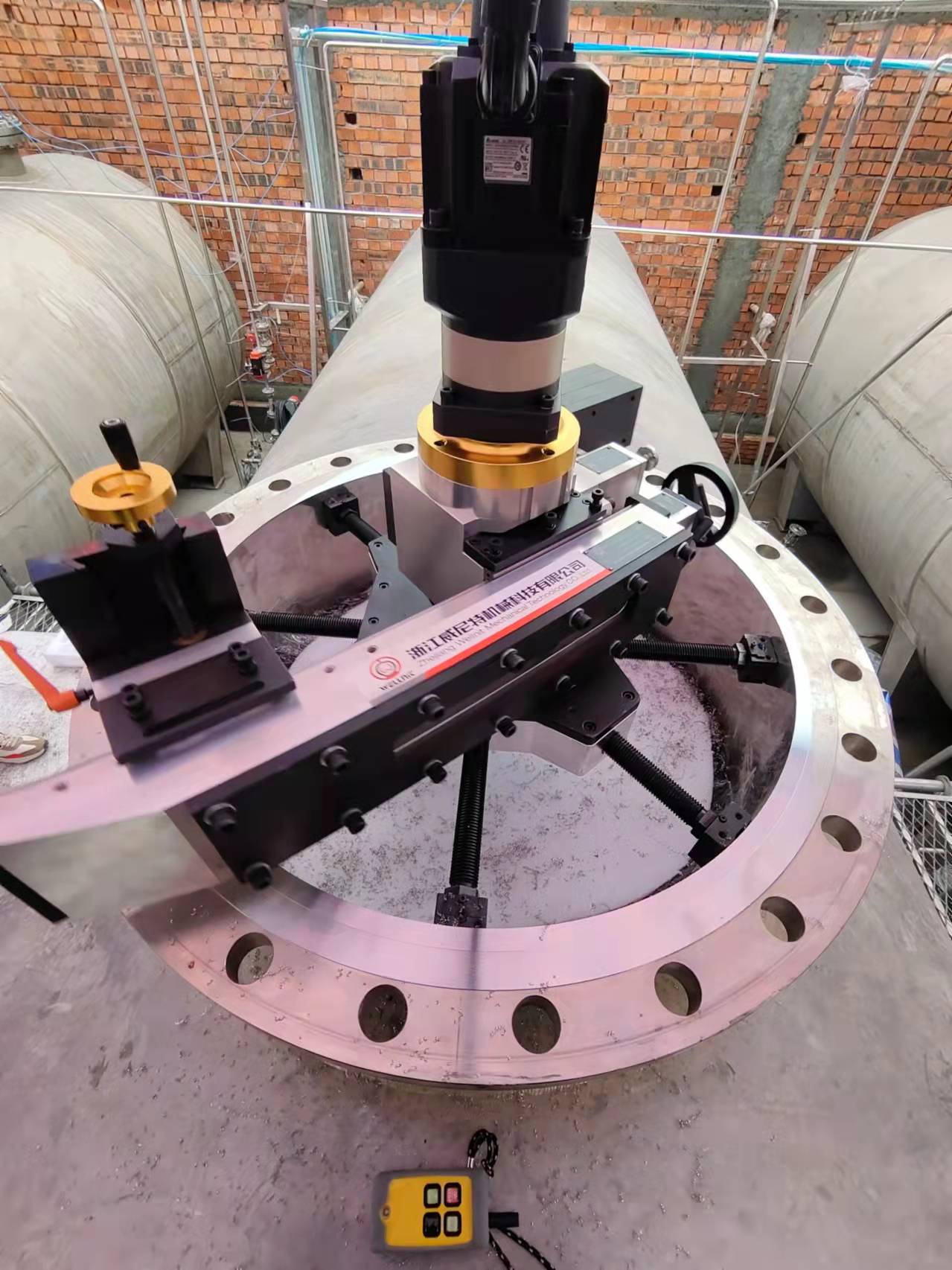

    Flange Facer ID Mount Flange Facing Machine For Wind Power Plant Face Machining is an internally mounted flange facing machine for all types of flange facings, seal groove machining, weld preparation and counter boring. The flange end face processing machine is a portable milling machine type machine with high efficiency and fast speed. It can process flange surfaces, water lines, sealing groove processing, sealing surface processing, etc.



    The installation direction of the machine is not fixed, it can be horizontal, vertical, upside down, etc. The drive mode can also be selected, with pneumatic and servo motor drive. Pneumatics need an air compressor to provide air source.The machine is installed internally, with a small working radius, suitable for any narrow space.


    Machine function:


    • Compound beveling tool post
    • Angle adjustment tool post
    • Heavy duty processing
    • Compound feed mechanism
    • Serrated spiral finish processing
    • Facing processing

    Machine specification


    ModelFacing Range (O.D)Mounting Range (I.D)Tool Feed StrokeTool holder swivel angleRotation Speed
    WFS-61050-610mm50-508mm50mm+-30°0-42r/min
    WFS-1000160-1000mm158-820mm102mm+-30°0-33r/min
    WFS-1650500-1650mm500-1500mm102mm+-30°0-22r/min
    WFS-2000690-2200mm690-2000mm102mm+-360°0-20r/min
    WFS-30001150-3000mm1120-2800mm102mm+-360°3-12r/min
