Groove Plate Edge Milling Machine Self Moving 1500mm/Min

Ask Lasest Price
Brand Name :	WELLNIT
Model Number :	PB-20D
Certification :	ISO,CE
Price :
Payment Terms :	TT, L/C
Supply Ability :	20Sets per day
Delivery Time :	5-8days

Add to Cart

Product Details
Company Profile

Groove Plate Edge Milling Machine Self Moving 1500mm/Min

Automatic Portable Steel Plate Beveling Machine PB-20D

The Machine bevel the steel, plate, stainless steel and aluminum automatically, which have big difference with milling machine in the market. We provide customer stable products.

The PB-20D type milling machine:
1. Machine parts:Anti-corrosion,hardening and tempering,abrasion treatment;
2. Welded parts: Stress relief treatment, deburring treatment, high temperature paint treatment;
3. More safe: The Control box is separate from the Electrical box, high voltage power supply do not contact with operation interface.

Specification

Power Supply	AC 380V 50HZ	Bevel Width	1-20mm
Total Power	1620W	Cutter Qty	12Pcs
Clamp Thickness	3-40mm	Rotation	1440r/min
Feed Speed	0-1500mm/min	Bevel Angle	30-37.5deg
Max bevel width	1-10mm	Net Weight	120Kgs
Porcess Material	CS,SS,Aluminum, compound and ohters	Gross Weight	150Kgs

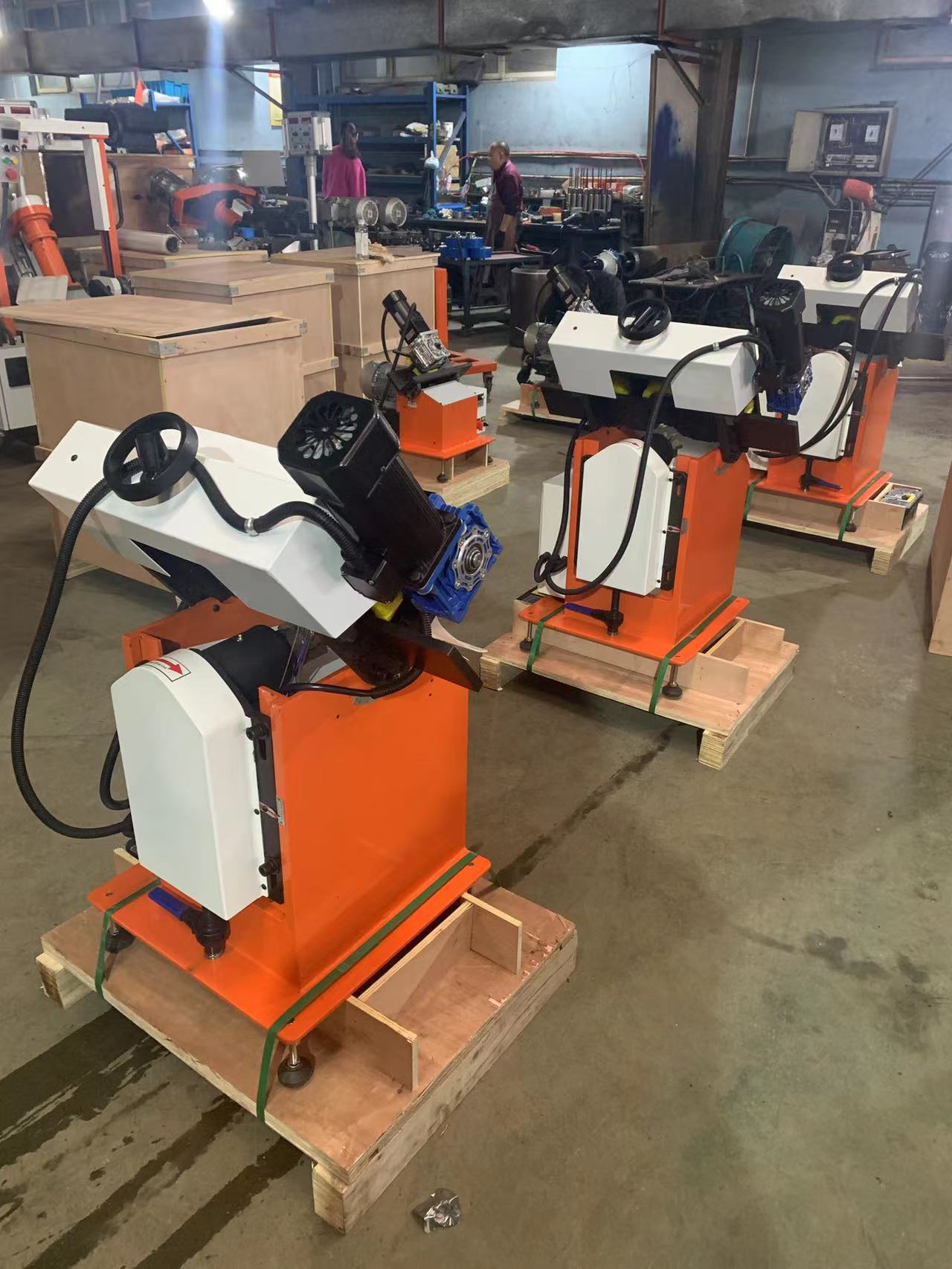

Detail Picture

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-10 days if the goods are in stock. Or 30 days , it's depand to quantity.

Q: What is your terms of payment ?

1) T/T 50% deposit, the Balance shall be paid after the goods inspected but before the shipment;

2) If all the cost is less than USD $ 10000, T/T 100% required in advance.

Order Guide

Before you place order to us, please let us know the following information:

*Choose the right Model

*Confirm your electric power supply ( Voltage, frequency and phase)

*Confirm the beveling angel required

*Confirm the welding joint required (U, V, Double V or Compound preparation)

*Advise your pipe material ( Carbon steel, stainless steel or others)

*Other special demands about machine

*The spare parts needed

*If the pipe wall thickness more than 30mm, inform us in advance (Important)

Packaging

Selling Units:	Single item
Single package size:	80X69X114 cm
Single gross weight:	255.0 KG
Package Type:	Wooden Case
