    Automatic Chamfering Cutting And Beveling Machine For Shipbuilding

    Ask Lasest Price
    Brand Name : Wellnit
    Model Number : PB-10D/20D/60/60L/60R/80/80R/100/100B
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 35 sets a month
    Delivery Time : within 7 days after received 100% payment
    • Product Details
    • Company Profile

    Automatic Chamfering Cutting And Beveling Machine For Shipbuilding

    Automatic walking beveling machine steel plate stainless steel chamfering machine carbon steel electric flat beveling machine milling machine.


    Product performance


    The bevel machining materials are metal materials such as iron, cast iron, aluminum, stainless steel and alloy steel. Automatic traveling flat beveling machine, this series of products is a wide range of welding and cutting auxiliary equipment suitable for shipbuilding, metallurgy, steel structure and other welding manufacturing industries. Compared with other beveling methods, it has high efficiency, energy saving, environmental protection and operation. Simple, easy to use and many other advantages; and can greatly reduce the labor workload of workers, saving labor costs; at the same time in line with the current low-carbon, low-energy environmental protection trends and concepts. Different models of the beveling machine can be used for bevel processing for different sizes of plates, and can also achieve up and down beveling. And the groove angle can be adjusted within the range.


    modelpower supplyTotal powerSpindle SpeedFeed SpeedBevel WidthSingle Bevel WidthBevel AngleClamo thicknessClamp widthProcess LengthWorktable Height
    PB-10DAC 380V
    50HZ
    2200W1440r/min

    0-1200r/min

    (adjustable)

    1-18mm1-10mm30°-60°(adjustable)2-40mm>20mm//
    PB-20DAC 3PH 380V 50HZ1620W1440r/min

    0-1500r/min

    (adjustable)

    1-20mm
    1-10mm30°-75°(adjustable)3-50mm>30mm//
    PB-60AC 380V 50HZ3400W1050r/min

    0-1500r/min

    (adjustable)

    1-45mm

    1-15mm10°-60°(adjustable)6-40mm>100mm>300mm820-860mm
    PB-60LAC 380V 50HZ3400W1050r/min

    0-1500r/min

    (adjustable)

    1-55mm

    1-15mm0°-90°
    (adjustable)
    6-60mm>80mm>300mm820-860mm
    PB-60RAC 380V 50HZ3400W1050r/min

    0-1500r/min

    (adjustable)

    0-55mm

    1-15mm10°-60°
    (-10°~ -60°)
    6-60mm>100mm>300mm700-800mm
    PB-80AC 380V 50HZ6400W750-1440r/min

    0-1500r/min

    (adjustable)

    1-70mm

    1-20mm0°-60°
    (adjustable)
    6-80mm>100mm>100mm820-860mm
    PB-80RAC 380V 50HZ6520W750-1440r/min

    0-1500r/min

    (adjustable)

    0-70mm

    0-20mm0°~±60°
    (adjustable)
    6-80mm>100mm>100mm820-860mm
    PB-100AC 3PH 380V 50HZ6520W750-1440r/min

    0-1500r/min

    (adjustable)

    1-100mm

    1-30mm0°-90°8-100mm>200mm>200mm850-900mm
    PB-100BAC 380V 50HZ6520W750-1440r/min

    0-1500r/min

    (adjustable)

    0-80mm

    0-20mm0°-90°6-100mm>100mm>100mm820-860mm

    Automatic Chamfering Cutting And Beveling Machine For Shipbuilding


    Features


    Fully automatic

    Automatic Chamfering Cutting And Beveling Machine For Shipbuilding

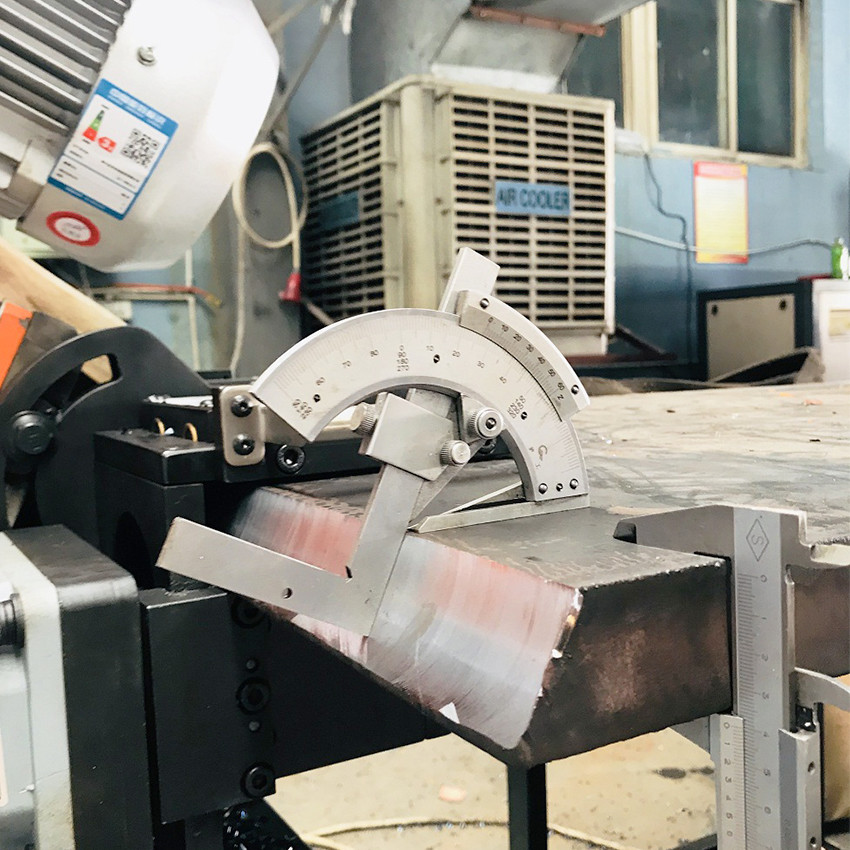

    Good bevel quality


    Automatic Chamfering Cutting And Beveling Machine For Shipbuilding


    Products Show


    Automatic Chamfering Cutting And Beveling Machine For Shipbuilding


    Automatic Chamfering Cutting And Beveling Machine For Shipbuilding


    Processing effect

    Automatic Chamfering Cutting And Beveling Machine For Shipbuilding
