Automatic external clamp pipe beveling machine external clamp pipe
cutting machine chamfering machine edge milling
Product introduction
The radial headroom is small and light in weight. It is suitable
for places with complex environment and small space; it can be
separated in half. This structure is suitable for the situation
where there are objects at both ends of the pipe, which are not
easy to
disassemble or cannot be disassembled. One-time clamping, cutting
and beveling can be completed at the same time. . Equipped
with corresponding accessories, can be used for pipe beveling,
boring processing, flange end surface processing, etc. The groove
quality is good, the speed is fast, and the operation is simple.
Product parameter
| Model number | Electric , pneumatic , hydraulic , CNC |
| specification | Processing outer diameter(mm) | OD(inch) | Wall thickness of cutting breach | Cutter speed |
| 89 | φ25-89 | 1‘-’3‘’ | ≤30 | 42r/min |
| 168 | φ 50-168 | 2‘’-6‘’ | ≤30 | 18r/min |
| 230 | φ 80-230 | 3‘’-8‘’ | ≤30 | 15r/min |
| 275 | φ 125-275 | 5‘’-10‘’ | ≤30 | 14r/min |
| 305 | φ 150-305 | 6‘’-10‘’ | ≤30 | 13r/min |
| 325 | φ 168-325 | 6‘’-12‘’ | ≤30 | 13r/min |
| 377 | φ 219-377 | 8‘’-14‘’ | ≤30 | 12r/min |
| 426 | φ 273-426 | 10‘’-16‘’ | ≤30 | 12r/min |
| 457 | φ 300-457 | 12‘’-18‘’ | ≤30 | 12r/min |
| 508 | φ 355-508 | 14‘’-20‘’ | ≤30 | 12r/min |
| 560 | φ 400-560 | 16‘’-22‘’ | ≤30 | 12r/min |
| 610 | φ 457-610 | 18‘’-24‘’ | ≤30 | 11r/min |
| 630 | φ 480-630 | 20‘’-24‘’ | ≤30 | 11r/min |
| 660 | φ 508-660 | 20‘’-26‘’ | ≤30 | 11r/min |
| 715 | φ 560-715 | 22‘’-28‘’ | ≤30 | 11r/min |
| 762 | φ 600-762 | 24‘’-30‘’ | ≤30 | 11r/min |
| 830 | φ 660-830 | 26‘’-32‘’ | ≤30 | 10r/min |
| 914 | φ 762-914 | 30‘’-36‘’ | ≤30 | 10r/min |
| 1066 | φ 914-1066 | 36‘-42‘’’ | ≤30 | 10r/min |
| 1230 | φ 1066-1230 | 42‘-48‘’’ | ≤30 | 10r/min |
| 1430 | φ 1230-1430 | 48‘-56‘’’ | ≤30 | 8r/min |
Product features
1.Simple operation:Equipped with new expansion jaws, which can be adjusted arbitrarily
according to the size of the tube, without changing the expansion
block, the operation is simple and convenient.
2.High efficiency: the machine feeds automatically, one person can
operate several machines, saving time and effort, and high
efficiency.
3. The cutting bevel is integrated: the machine cuts the bevel at
the same time, and the bevel surface has been formed at the same
time as the blanking.
4.Multiple drive modes: The machine drive mode can be freely
selected (electric, pneumatic, hydraulic, CNC,) to suit different
working environments.
5.Cold processing method: adopts low-speed heavy-duty design and
cold cutting processing method, which can completely cope with
pipeline construction with high thermal influence.
6.Lightweight body: compact body design, small footprint, easy
installation and disassembly, especially for limited space
operations on construction sites, with outstanding performance.
7.Automatic feed: automatic feed, cut off and bevel processing can
be completed in one clamping.
8.The cut slope surface is smooth and burr-free: completely cold
cut, does not affect the material, and the slope surface is smooth
and burr-free, and the bevel can be directly used for welding.
9.High-quality blades: The machine is equipped with 4 blades, 2
cutting knives, and 2 beveling knives. The cutting tools are of
high quality, selected M42 material, high hardness and strong wear
resistance.

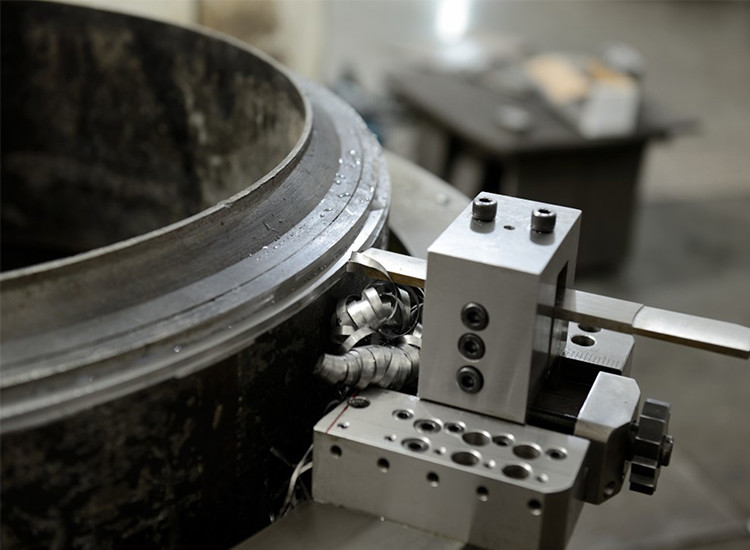

Processing schematic
Field case
