Lower Axial Air Operation Pneumatic Pipe Beveler , Split Frame
Machine
Production Description:
The series machine is ideal for all types of pipe cutting, beveling
and end preparation.
The split frame design allows the machine to split in half at the
frame and mount around
the OD of the in-line pipe or fittings for strong, stable clamping.
The equipment performs precision in-line cut or simultaneous
cut/bevel, single point, counterbore and
flange facing operations, as well as weld end preparation on open
ended pipe.
Pneumatic
Explosion Proof
Stable performance
Easy to maintenance
Air requirement: 1500-2000L/min @0.63-0.8Mpa
Power: 2HP, 3HP, 4HP
Double motor for big model or heavy duty
Electric
Convenient power supply
Stable performance
Popular choice
Electric requirement: 220-240V 1PH 50/60HZ
Power: 1.43KW, 1.7KW, 2.4KW
Double motor for big model or heavy duty
Hydraulic
Powerful drive, high efficiency
Stable performance, low noise, anti-explosion
Ideal for heavy wall thickness & large size pipe
Hydraulic requirement: 28-50L/min @13Mpa
Electric requirement: 380V 3PH 50/60Hz
Rated Pressure: 13MPa
Rated flow: 28L/min
Max. Torque: 380NM
NC
Powerful drive, high efficiency
Low noise, stable performance
Ideal for heavy wall thickness & large size pipe
Electric requirement: 230V 1PH 50/60Hz;
380V 3PH 50/60Hz
Power: 2.0KW or 3.0KW
Double motor for big model or heavy duty

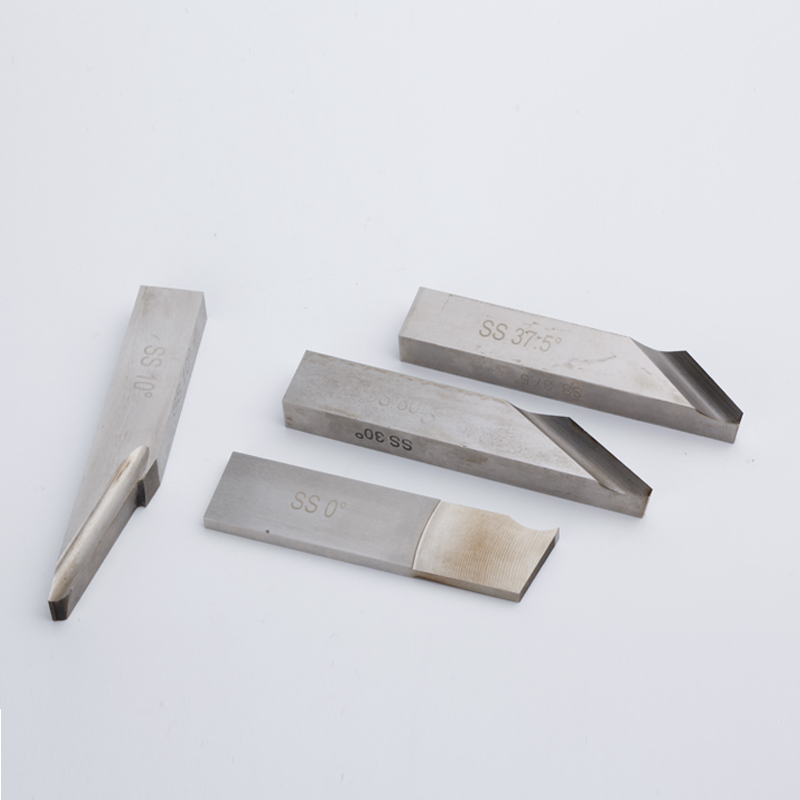

Form Style
Material: M42 and M35
Type: Sever, bevel, double bevel
compound bevel,counter bore
Angle: 0°, 30°, 37.5°
Double 30°, 37.5°+10°
Size: 90mm, 150mm, 200mm
Insert style
Material: Holder HSS
Insert: HSS-Co or Carbide
Type: Sever, bevel, double bevel, compound bevel
Angle: 0°, 30°, 37.5°,
Double 30°, 37.5°+10°
Size: 90mm, 150mm, 200mm
Main Features:
1. Cold Cutting and Beveling improves safety.
2. Cutting and Beveling simultaneous.
3. Split Frame: easy mounted on pipeline.
4. Tools feed automatically.
5. Fast, Precision, On-site Beveling.
6. Minimal Axial and Radial clearance.
7. Light weight and compact design.
8. Easy set-up & Operation.
16 models, working range for pipe OD 1"-48".
Non-standard model can be customized.
Out-mounted style, clamping by multipoint jaws.
Split frame technology, easy to install on the pipeline.
Cold cutting and beveling, don't influence the pipe's material.
Auto feed, cutting and beveling at the one time, cost effective.
Varity of beveling shape: "U", "V", "Y", J", double "V", compound
bevels.
Stationary ring is steel; rotation ring is aluminum, and steel
optional.
Electric, pneumatic, numerical control and hydraulic drive options
are available.
Several different drive options are available to best position, the
motor for a specific machining application.
It can be equipped a wide range of accessories to increase
performance and expand.
Spare parts: tools
Technical Specifications:
| Model | working range(ID-OD) | wall thickness | rotation speed |
| OCP-1066 | Φ914-1066(36”-42”) | ≤30mm | 10 r/min |
