Precision Oval Pneumatic Pipe Cutting Beveling Machine Light Weight 220 Voltage

Ask Lasest Price
Brand Name :	Wellnit
Model Number :	OCP-230
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	50 sets month
Delivery Time :	5-7 days

Add to Cart

Product Details
Company Profile

Precision Oval Pneumatic Pipe Cutting Beveling Machine Light Weight 220 Voltage

Precision Oval Pneumatic Pipe Cutting Beveling Machine Light Weight 220 Voltage

Production Description:

The series machine is ideal for all types of pipe cutting, beveling and end preparation.

The split frame design allows the machine to split in half at the frame and mount around

the OD of the in-line pipe or fittings for strong, stable clamping.

The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and

flange facing operations, as well as weld end preparation on open ended pipe.

Model	Working Range (ID-OD)		Wall Thickness	Rotation Speed	Air pressure	Air Consumption
OCP-89	Φ25-89	3/4''-3''	≤35	50r/min	0.6MPa	1500 L/min
OCP-159	Φ50-159	2''-5''	≤35	21r/min	0.6MPa	1500 L/min
OCP-168	Φ50-168	2''-6''	≤35	21r/min	0.6MPa	1500 L/min
OCP-230	Φ80-230	3''-8''	≤35	20r/min	0.6MPa	1500 L/min
OCP-275	Φ125-275	5''-10''	≤35	20r/min	0.6MPa	1500 L/min
OCP-305	Φ150-305	6''-10''	≤35	18r/min	0.6MPa	1500 L/min
OCP-325	Φ168-325	6''-12''	≤35	16r/min	0.6MPa	1500 L/min
OCP-377	Φ219-377	8''-14''	≤35	13r/min	0.6MPa	1500 L/min
OCP-426	Φ273-426	10''-16''	≤35	12r/min	0.7MPa	1800 L/min
OCP-457	Φ300-457	12''-18''	≤35	12r/min	0.7MPa	1800 L/min
OCP-508	Φ355-508	14''-20''	≤35	12r/min	0.7MPa	1800 L/min
OCP-560	Φ400-506	16''-22''	≤35	12r/min	0.7MPa	1800 L/min
OCP-610	Φ457-610	18''-24''	≤35	11r/min	0.7MPa	1800 L/min
OCP-630	Φ480-630	20''-24''	≤35	11r/min	0.7MPa	1800 L/min
OCP-660	Φ508-660	20''-26''	≤35	11r/min	0.7MPa	1800 L/min
OCP-715	Φ560-715	22''-28''	≤35	11r/min	0.7MPa	1800 L/min
OCP-762	Φ600-762	24''-30''	≤35	11r/min	0.8MPa	2000 L/min
OCP-830	Φ660-813	26''-32''	≤35	10r/min	0.8MPa	2000 L/min
OCP-914	Φ762-914	30''-36''	≤35	10r/min	0.8MPa	2000 L/min
OCP-1066	Φ914-1066	36''-42''	≤35	9r/min	0.8MPa	2000 L/min
OCP-1230	Φ1066-1230	42''-48''	≤35	8r/min	0.8MPa	2000 L/min

Main Features:

1. Cold Cutting and Beveling improves safety.

2. Cutting and Beveling simultaneous.

3. Split Frame: easy mounted on pipeline.

4. Tools feed automatically.

5. Fast, Precision, On-site Beveling.

6. Minimal Axial and Radial clearance.

7. Light weight and compact design.

8. Easy set-up & Operation.

9. Machining heavy-wall pipe from 3/4" up to 56.

10. Measure the size of the pipe to be machined, select the swelling block according to the swelling block

diagram, install it on the wedge block, tighten the bolt, make sure it is secure and loose.

11. According to the processing requirements, select the tool table in the appropriate angle of the tool,

installed in the machine cutter, tighten the bolt, fixed tool.

12. Rotate the feed hand wheel to extend the feed spindle.

13. Make the machine tightening mechanism into the tube, the cutter head and pipe surface should be left

enough feed space.

14. Rotate the hand wheel and adjust the machine position to ensure that the machine feeds the spindle

coaxial with the center of the tube. Tighten the nut on the hand wheel with a wrench.

15. Start the motor, rotate the feed handwheel, the blade is in contact with the pipe wall, and groove.

16. After finishing the machining, first exit the tool, then release the tightening mechanism, remove the

machine from the tube.

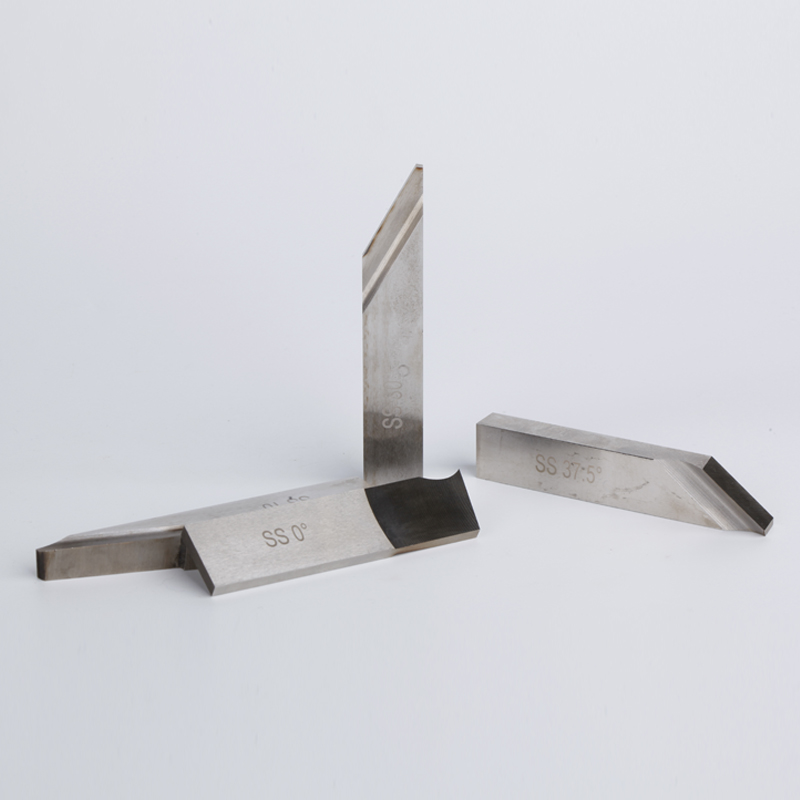

Spare parts: Tool

Technical Specifications:

Model	working range(ID-OD)	wall thickness	rotation speed
OCP-230	Φ80-230(3”-8”)	≤30mm	15 r/min
