Bevel Angle Hydraulic Stainless Steel Pipe Beveling Machine For
Ship Building
Production Description:

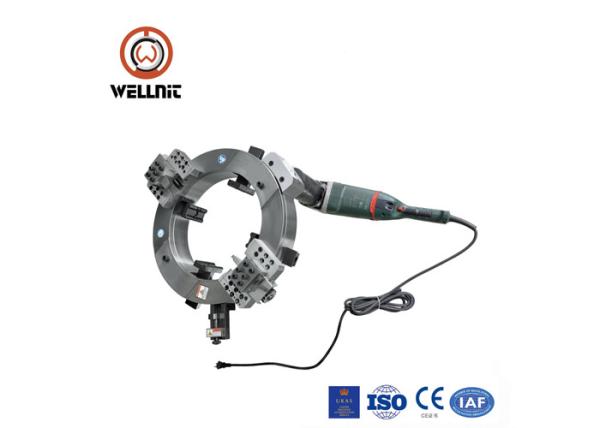

The series machine is ideal for all types of pipe cutting, beveling
and end preparation.
The split frame design allows the machine to split in half at the
frame and mount around
the OD of the in-line pipe or fittings for strong, stable clamping.
The equipment performs precision in-line cut or simultaneous
cut/bevel, single point,
counterbore and flange facing operations, as well as weld end
preparation on open ended pipe,
Ranging from 2” to 48” O.D.(DN50-1200), on most wall thicknesses
and material.
Application:
Power Plant.
Oil & Gas File.
Nuclear Power Plant.
Process Plant & Fabrication.
Ship Building & Repair.
Main Features:
1. Cold Cutting and Beveling improve safety.
2. Cutting and Beveling simultaneous.
3. Split Frame: easy mounted on pipeline.
4. Self-acting tools feed.
5. Fast, Precision, In-situ Beveling.
6. Minimal Axial and Radial clearance.
7. Light weight and Compact design.
8. Easy install & Operation.
9. Pneumatic or Electric or Hydraulic driven.
10. Machining heavy-wall pipe from 2” up to 48”.
Technical Specifications:
| Model | working range(ID-OD) | wall thickness | rotation speed |
| OCH-830 | Φ660-813(26”-32”) | ≤30mm | 10 r/min |
Note:Non-standard machine are available according to customers'
requirement.
Specification:
Air requirement: 1500L-3000L /Min@0.6/0.7Mpa
Hydraulic requirement: 2-60L per minute 12.5Mpa
Drive Options: Pneumatic, Hydraulic, and Electric
Electric requirement:220-240V 1PH 50/60HZ
Feed rate: Fixed 0.08mm per circle
Order guide:
Before you place order to us, please let us know the following
information:
1. Choose suitable Model.
2. Confirm electric power supply ( Voltage, frequency and phase).
3. Confirm the beveling angel needed.
4. Confirm the welding joint required (U, V, Double V or Compound
preparation).
5. Advise your pipe material ( Carbon steel, stainless steel or
others).
6. Other special demands about machine.
- The spare parts required.
- If the pipe wall thickness more than 30mm, inform us in advance
(Important).
16 models, working range for pipe OD 1"-48"
Non-standard model can be customized
Out-mounted style, clamping by multipoint jaws.
Split frame technology, easy to install on the pipeline.
Cold cutting and beveling, don't influence the pipe's material.
Auto feed, cutting and beveling at the one time, cost effective.
Varity of beveling shape: "U", "V", "Y", J", double "V", compound
bevels.
Stationary ring is steel; rotation ring is aluminum, and steel
optional
Electric, pneumatic, numerical control and hydraulic drive options
are available.
Several different drive options are available to best position, the
motor for a specific machining application.
It can be equipped a wide range of accessories to increase
performance and expand
Capability
Pipe cut off
Pipe end beveling
Pipe facing
Cutting and beveling
Compound beveling
Counter boring
Flange facing
Grooving
