ID Mounted Pneumatic Pipe Beveler Pipe Chamfering Machine Compact Design

Ask Lasest Price
Brand Name :	Wellnit
Model Number :	ISP-159
Certification :	ISO9001,CE
Payment Terms :	T/T
Supply Ability :	50 sets for a mounth
Delivery Time :	within 7 days after received 100% payment
Price :	Negotiable

Add to Cart

Product Details
Company Profile

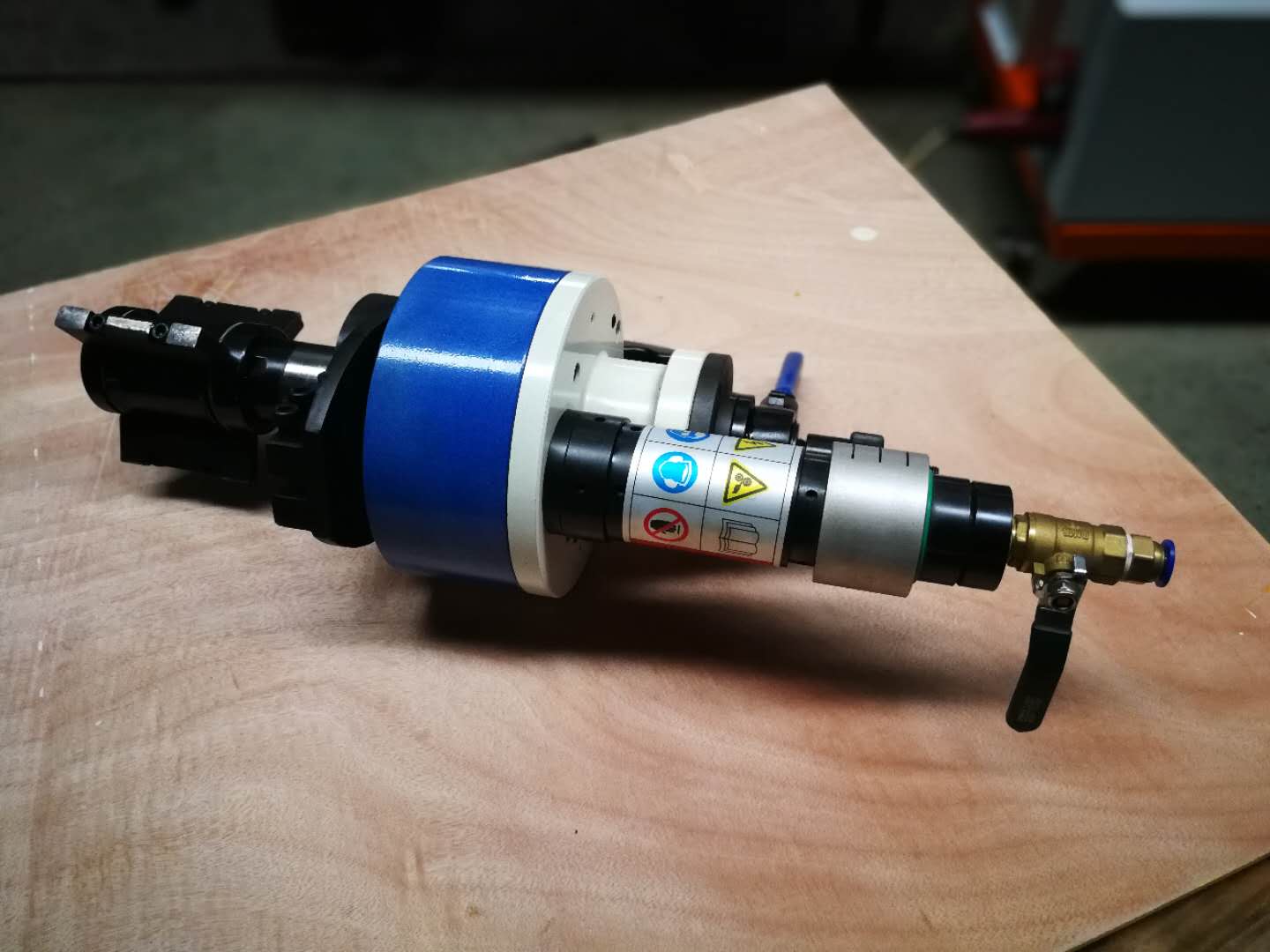

ID Mounted Pneumatic Pipe Beveler Pipe Chamfering Machine Compact Design

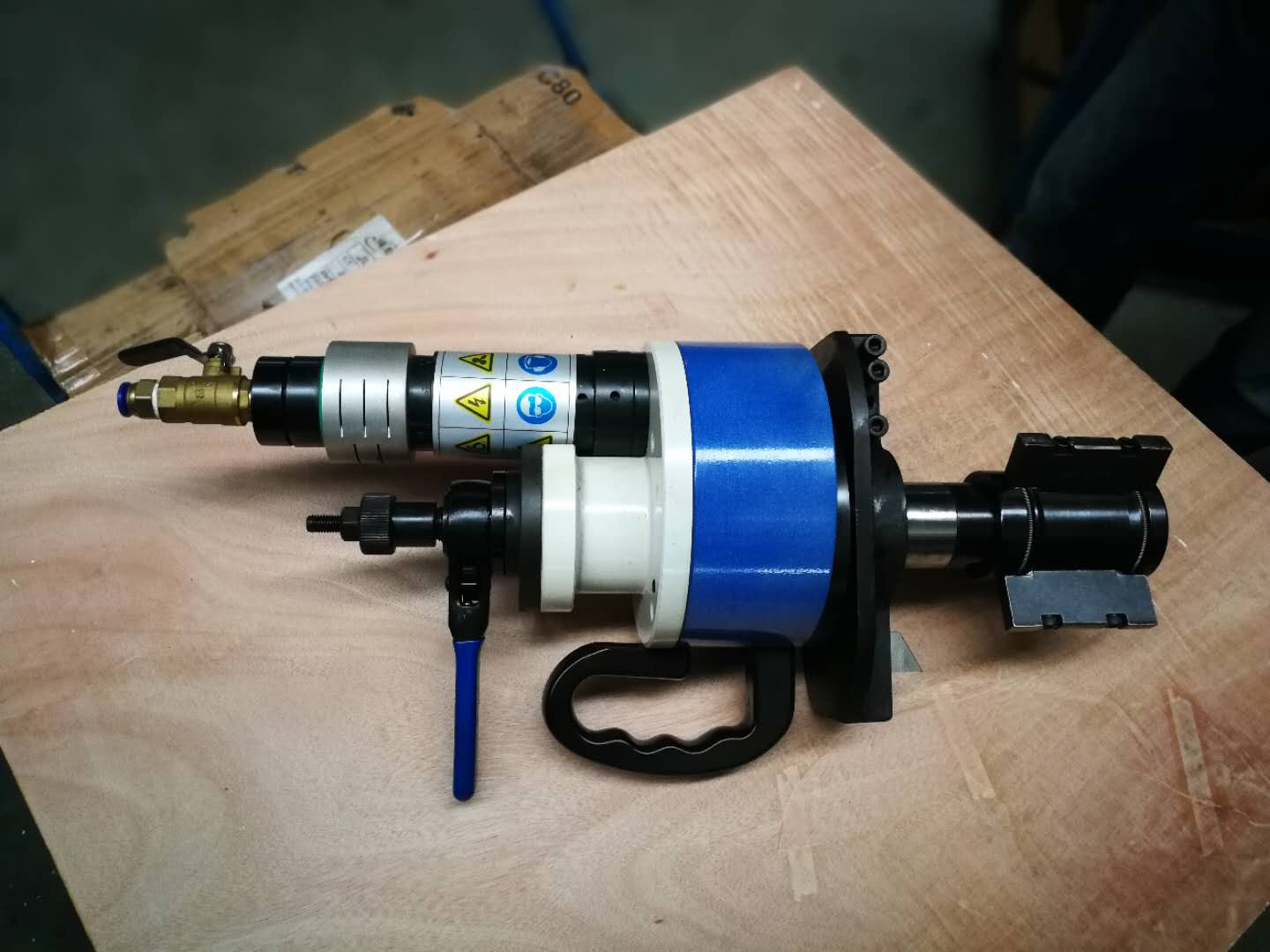

ID Mounted Pneumatic Pipe Beveler Pipe Chamfering Machine Compact Design

Main performance of the product

This series is ID-Mounted pipe beveling machine,with the following advantages:Easy operation, light weight and convenient to carry.

The ID-Mounted pipe beveling machines use expanding mandrel to holding itself against on the internal surface of pipe via the open end of pipe. A draw nut is tightened,Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.

It's can work with various material pipe,beveling angle as per your required.ISP Series is ID-Mounted pipe beveling machine. With the advantages: Easy operation, Light Weight, Adraw nut is tightened, Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. It's can work with various material pipe, beveling angle as per your required. This machine could driven by both Electric and Pneumatic.

Below Technical Specifications for Pneumatic Type stainless steel tube polishing Machine :

Model	Working Range (ID-OD)		Wall Thickness	Rotation Speed	Air pressure	Air Consumption
ISP-30	Φ18-30	1/2''-3/4''	≤15	60r/min	0.6MPa	900 L/min
ISP--80	Φ28-89	1''-3''	≤15	50r/min	0.6MPa	900 L/min
ISP--120	Φ40-120	1 1/4''-4''	≤15	38r/min	0.6MPa	900 L/min
ISP--159	Φ65-159	2 1/2''-5''	≤20	35r/min	0.6MPa	1000 L/min
ISP--252-1	Φ80-273	3''-10''	≤20	16r/min	0.6MPa	1000 L/min
ISP--252-2	Φ80-273	3''-10''	≤75	16r/min	0.6MPa	1000 L/min
ISP--352-1	Φ150-356	6''-14''	≤20	14r/min	0.6MPa	1200 L/min
ISP--352-2	Φ150-356	6''-14''	≤75	14r/min	0.6MPa	1200 L/min
ISP--426-1	Φ273-426	10''-16''	≤20	12r/min	0.7MPa	1500 L/min
ISP--426-2	Φ273-426	10''-16''	≤75	12r/min	0.7MPa	1500 L/min
ISP--630-1	Φ300-630	12''-24''	≤20	10r/min	0.7MPa	1500 L/min
ISP--630-2	Φ300-630	12''-24''	≤75	10r/min	0.7MPa	1500 L/min
ISP--850-1	Φ490-850	24''-34''	≤20	9r/min	0.7MPa	1500 L/min
ISP--850-2	Φ490-850	24''-34''	≤75	9r/min	0.7MPa	1500 L/min

Technical Parameter

ISP-159 Beveling Machine
Voltage	220-240V
Frequency	50-60Hz
Power	1600W
Wall Thickness	≦20
Working Range	65-159mm
Rotation Speed	35r/min
Net Weight	32kg

Non-standard machines are available according to customers’requirement.

Technical characteristics

This series is ID Mounted Welding Preparation Pipe Chamfering Tool with the following advantages:

Features:

On-site cold Beveling improves safety
Easy set-up & Operation
Self-Centering
Can be positioned in any direction
Feed ratchet spanner makes tool feed / back easily
Light weight and compact design

Lighter weight,minimal radial space,Easy to operate.
A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
Driveing Type:Electric-ISE,Pneumatic-ISP.
Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
Angle:Beveling angle as per your required.
