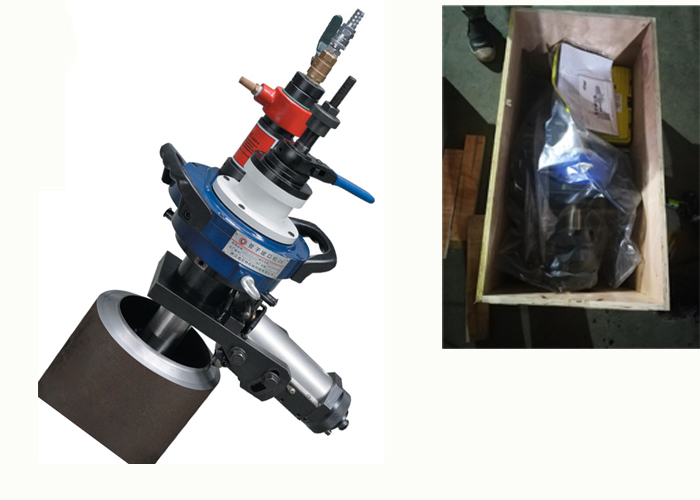

1600W ISP Pneumatic Pipe Beveler Inside Mounted With Free Cutter 14 R/min

    Buy cheap 1600W ISP Pneumatic Pipe Beveler Inside Mounted With Free Cutter 14 R/min from wholesalers

    Buy cheap 1600W ISP Pneumatic Pipe Beveler Inside Mounted With Free Cutter 14 R/min from wholesalers
    • Buy cheap 1600W ISP Pneumatic Pipe Beveler Inside Mounted With Free Cutter 14 R/min from wholesalers
    • Buy cheap 1600W ISP Pneumatic Pipe Beveler Inside Mounted With Free Cutter 14 R/min from wholesalers

    1600W ISP Pneumatic Pipe Beveler Inside Mounted With Free Cutter 14 R/min

    Ask Lasest Price
    Brand Name : Wellnit
    Model Number : ISP-352-2
    Certification : ISO9001
    Payment Terms : T/T
    Supply Ability : 50 sets for a mounth
    Delivery Time : within 7 days after received 100% payment
    Price : Negotiable
    • Product Details
    • Company Profile

    1600W ISP Pneumatic Pipe Beveler Inside Mounted With Free Cutter 14 R/min

    1600W ISP Pneumatic Pipe Beveler Inside Mounted With Free Cutter 14 R/min

    Production Description

    This series is Air Operated Welding Preparation Pipe Beveling Machine with the following advantages:
    Lighter weight,minimal radial space,Easy to operate.
    A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
    Driveing Type:Electric-ISE,Pneumatic-ISP.
    Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
    Angle:Beveling angle as per your required.


    Technical Parameter


    ISP-352-2 Beveling Machine
    Voltage220-240V
    Frequency50-60Hz
    Power1600W
    Wall Thickness≦75
    Working Range150-356mm
    Rotation Speed14r/min
    Net Weight

    88kg



    Model
    Working Range(ID-OD)Wall Thickness(mm)Rotation Speed(r/min)
    ISP-30Φ18-301/2"-3/4"≤1560
    ISP-80Φ28-891"-3"≤1555
    ISP-120Φ40-12011/4"-4"≤1538
    ISP-159Φ65-15921/2"-5'≤2035
    ISP-252-1Φ80-2733"-10"≤2016
    ISP-252-2Φ80-273≤7516
    ISP-352-1Φ150-3566"-14"≤2014
    ISP-352-2Φ150-356≤7514
    ISP-426-1Φ273-42610"-16"≤2012
    ISP-426-2Φ273-426≤7512
    ISP-630-1Φ300-63012"-24"≤2010
    ISP-630-2Φ300-630≤7510
    ISP-850-1Φ490-85024"-34"≤209
    ISP-850-2Φ490-850≤759


    Non-standard machines are available according to customers’requirement.


    Order Guide
    Before you place order to us, please let us know the following information:
    Choose the right Model
    Confirm your electric power supply ( Voltage, frequency and phase)
    Confirm the beveling angel required
    Confirm the welding joint required (U, V, Double V or Compound preparation)
    Advise your pipe material ( Carbon steel, stainless steel or others)
    Other special demands about machine
    The spare parts needed
    If the pipe wall thickness more than 30mm, inform us in advance (Important)
