High Precision Electric Pipe Cutting And Beveling Machine 50mm -
168mm Working Range

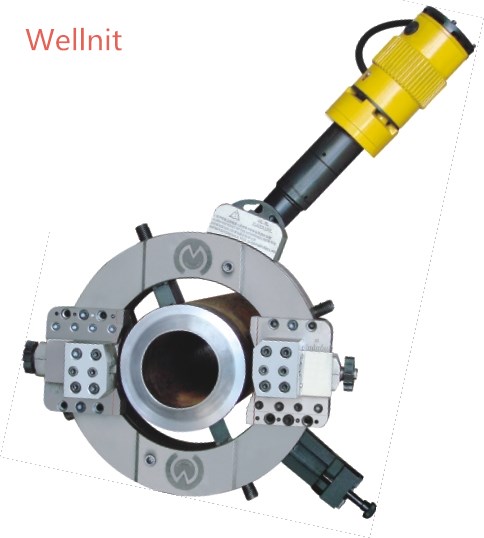

Standard split frame pipe cutting and beveling machine, designed to
cut, bevel, single point, counterbore
and face on the pipe, tube and flanges. It is a portable pipe
cutting and beveling machine tools of clamshell
style. Smartly designed, ability to split in half at the frame,
easy to install on the pipe line.
It is comprehensive used in pipework of oil, gas, food, petroleum,
chemical, boiler, medicine machine,
nuclear power, and power supply construction. 16 models are
available in 6 inch (152.4mm) increments,
with additional sizes available by special order.
Features and Advantages
16 models, working range for pipe OD 1"-48"
Non-standard model can be customized
Out-mounted style, clamping by multipoint jaws.
Split frame technology, easy to install on the pipeline.
Cold cutting and beveling, don't influence the pipe's material.
Auto feed, cutting and beveling at the one time, cost effective.
Varity of beveling shape: "U", "V", "Y", J", double "V", compound
bevels.
Stationary ring is steel; rotation ring is aluminum, and steel
optional
Electric, pneumatic, numerical control and hydraulic drive options
are available.
Several different drive options are available to best position, the
motor for a specific machining application.
It can be equipped a wide range of accessories to increase
performance and expand
Capability
Pipe cut off
Pipe end beveling
Pipe facing
Cutting and beveling
Compound beveling
Counter boring
Flange facing
Grooving
Industry Application:
It is widely used in long-distance transport pipeline, power plant,
nuclear power, petroleum, chemical
engineering, natural gas, boiler shop, pharmacy, pipe
prefabrication plant, pipeline installation engineering,
rush-repair work, etc.
Bevel Type
We have standard beveling tools of 5°,10°,20°,30°,37° and also can
customize the tools.
Processing range can be customized according to requirements
Drive mode | Pneumatic | Air requirements |
1.7m3/min-6.2bars
(65ft3/min-90psi)
|
Hydraulic |
Hydraulic
requirements | 31l/min-104bars
(8gal/min-1500psi)
|
Electric
|
Electric requirements
|
220V/AC
|
Feed method
| Star wheel system
| Feed rate
| Fixed 0.08mm per trip
|
Finish
| Anodizing sand blasting | Packaging | Aluminum alloy packing case |
The series machine is ideal for all types of pipe cutting, beveling
and end preparation.
The split frame design allows the machine to split in half at the
frame and mount around
the OD of the in-line pipe or fittings for strong, stable clamping.
The equipment performs precision in-line cut or simultaneous
cut/bevel, single point, counterbore
and flange facing operations, as well as weld end preparation on
open ended pipe,
Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall
thicknesses and material.
Main Features:
1. Lower axial and radial clearance.
2. Cold cutting and beveling,No spark.
3. Easy set-up &Robust operation.
4. Process carbon steel ,stainless steel ,alloy etc with U,V,J
compound bevel.
5. Widely used in the fields of petroleum,chemical,natural gas,food
,boiler,medicine,
power supply construction and nuclear power.
Technical Specifications:
| Model | working range(ID-OD) | wall thickness | rotation speed |
| OCE-168 | Φ50-168(2”-6”) | ≤30mm | 21r/min |
