Low Clearance Portable Pipe Cutter And Beveler Single Point Easy
Operating
Production Description:
The series machine is ideal for all types of pipe cutting, beveling
and end preparation.

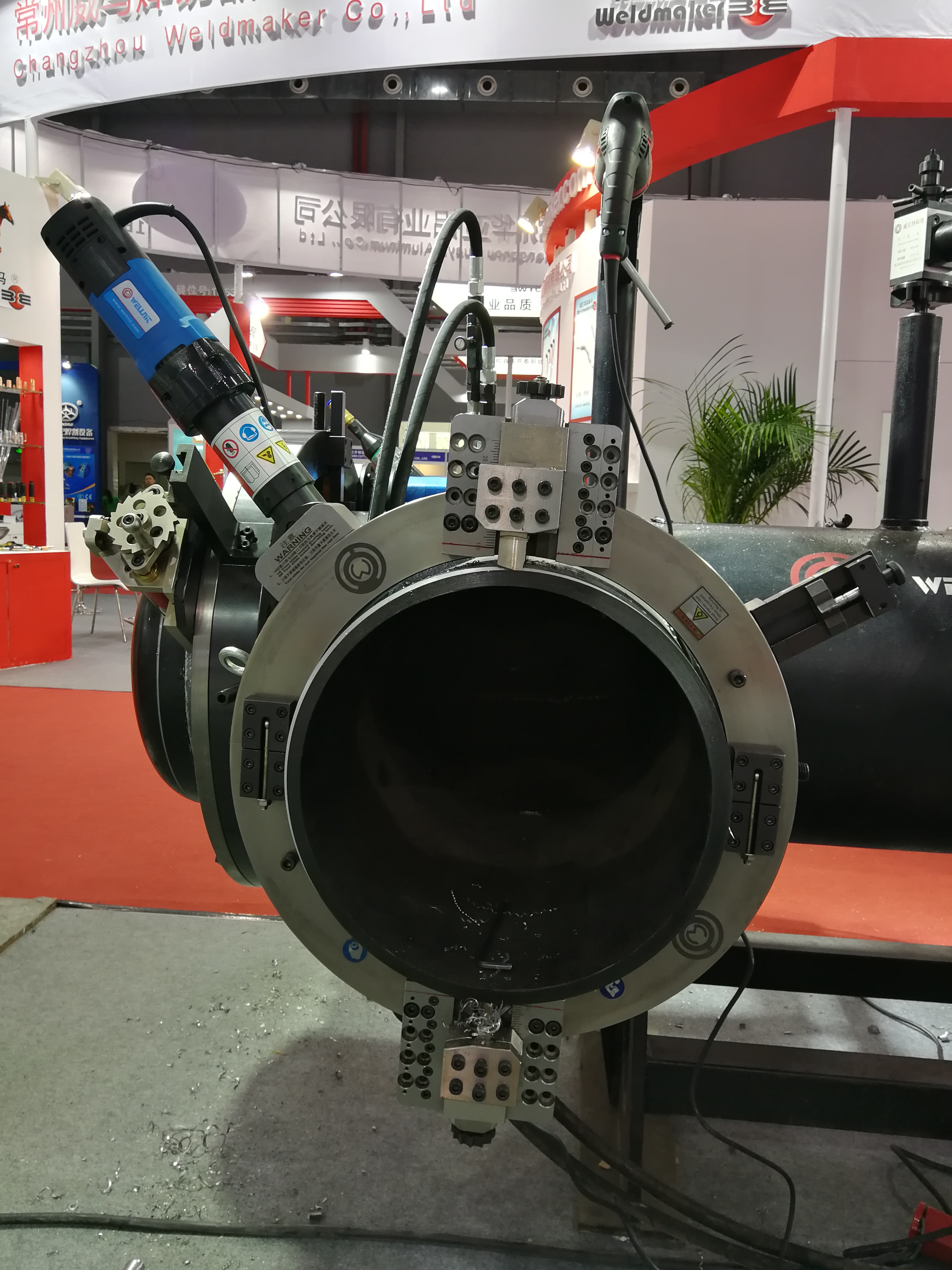

The split frame design allows the machine to split in half at the
frame and mount around
the OD of the in-line pipe or fittings for strong, stable clamping.
The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and
flange facing operations, as well as weld end
preparation on open ended pipe, Ranging from 3/4” to 56 inches
O.D.(DN20-1400), on most wall
thicknesses and material.
Question 1: How to choose a suitable model?
RE: Before choose the model,we need to know more details about the
pipe,such as the I.D,O.D,wall
thickness,the material of the pipe and the enviroment of the site
and the requirement of the end face.
Then it will be more convient for all of us to make an immediately
decision .Thanks!
Question 2: Do you have another choice about the driven?
RE: Of course,we have widely variety of choices for you, such as
the electric,pneumatic,hydraulic and NC.
Queation 3: About the type of the beveling?
RE: The normally type is the v and U,if you have any special
requirement, please let us know it, i believe
that our engineer can provide a solution for you.
The split frame clamshells use extremely low eight aluminum boy,
easily setup in both on-site and
workshop
1.This pipe cutting machine is easy to use, one operator can mount
and dismount the machine
on pipe within minutes.
2.This pipe cutting and beveling machine has excellent stability
and enhanced gear heat treatment to
ensure expanded machine life.
3.Heavy Duty, cutting and beveling simultaneously.
4.Suitable for cut all kind of materials, from cast iron, high
strength alloy, to stainless steel.
5.Base plate can be easily installed and uninstalled, for workshop
and field application.
6.Three power sources available for different application:
Hydraulic Station, Pneumatic, and Electric.
7.Orbital saw cold cutting will not influence the pipe's material.
8.Can process cutting and grooving at the same time, also can
process seperately.
9. Pipe stationary, high rotating speed cutting tool bit, high
cutting efficient.
10. Patent reverse stop block and locked hand-wheel, safe guaranty.
11. Clamping pipe with lots of jaws, center automatically, no
deformation.
Main Features:
1. Cold Cutting and Beveling improves safety.
2. Cutting and Beveling simultaneous.
3. Split Frame: easy mounted on pipeline.
4. Tools feed automatically.
5. Fast, Precision, On-site Beveling.
6. Minimal Axial and Radial clearance.
7. Light weight and compact design.
8. Easy set-up & Operation.
Technical Specifications:
| Model | working range(ID-OD) | wall thickness | rotation speed |
| OCE-426 | Φ273-426(10”-16”) | ≤30mm | 12r/min |
Note:Non-standard machine are available according to customers'
requirement.
