    High Efficient Metabo Pipe Cutting And Beveling Machine 220V 1.5KW - 2KW

    Ask Lasest Price
    Brand Name : Wellnit
    Model Number : OCM-159
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 50 sets month
    Delivery Time : 5-7 days
    • Product Details
    • Company Profile

    High Efficient Metabo Pipe Cutting And Beveling Machine 220V 1.5KW - 2KW

    High Efficient Metabo Pipe Cutting And Beveling Machine 220V 1.5KW - 2KW


    Production Description:

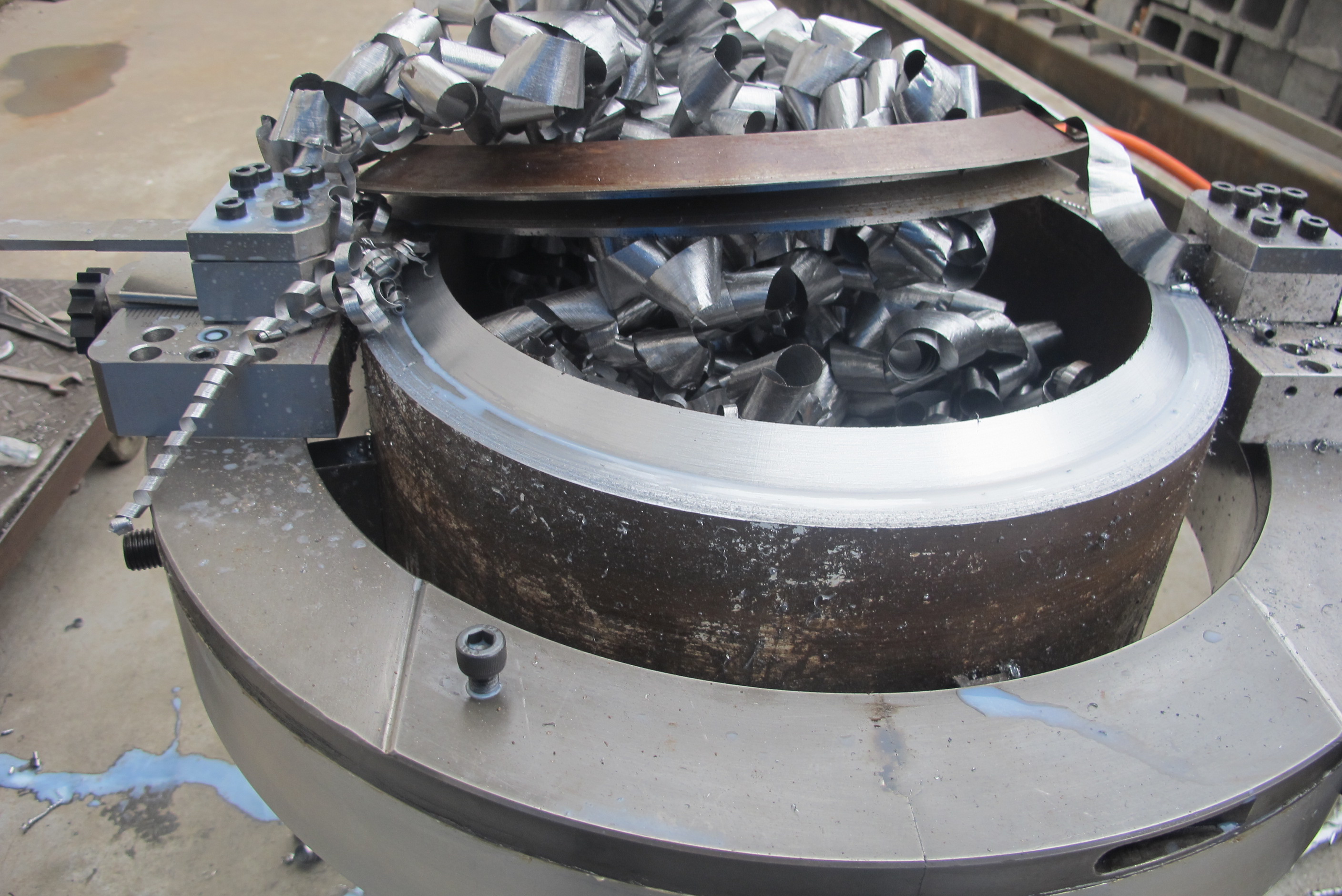

    The series machine is ideal for all types of pipe cutting, beveling and end preparation.


    The split frame design allows the machine to split in half at the frame and mount around


    the OD of the in-line pipe or fittings for strong, stable clamping. The equipment performs precision in-line


    cut or simultaneous cut/bevel, single point, counterbore and flange facing operations, as well as weld end


    preparation on open ended pipe, Ranging from 3/4” to 56 inches O.D.(DN20-1400), on most wall


    thicknesses and material.


    They are widely used in the fileds of repairing and installing the pipe on site,such as the industry of the


    petroleum,chemical, natural gas and so on.


    Main Features:


    1. Cold Cutting and Beveling improves safety.


    2. Cutting and Beveling simultaneous.


    3. Split Frame: easy mounted on pipeline.


    4. Tools feed automatically.


    5. Fast, Precision, On-site Beveling.


    6. Minimal Axial and Radial clearance.


    7. Light weight and compact design.


    8. Easy set-up & Operation.


    Question 1: How to choose a suitable model?


    RE: Before choose the model,we need to know more details about the pipe,such as the I.D,O.D,wall


    thickness,the material of the pipe and the enviroment of the site and the requirement of the end face.


    Then it will be more convient for all of us to make an immediately decision .Thanks!


    Question 2: Do you have another choice about the driven?


    RE: Of course,we have widely variety of choices for you, such as the electric,pneumatic,hydraulic and NC.


    Queation 3: About the type of the beveling?


    RE: The normally type is the v and U,if you have any special requirement, please let us know it, i believe


    that our engineer can provide a solution for you.


    The split frame clamshells use extremely low eight aluminum boy, easily setup in both on-site and


    workshop


    1. This pipe cutting machine is easy to use, one operator can mount and dismount the machine


    on pipe within minutes.


    2. This pipe cutting and beveling machine has excellent stability and enhanced gear heat treatment to


    ensure expanded machine life.


    3. Heavy Duty, cutting and beveling simultaneously.


    4. Suitable for cut all kind of materials, from cast iron, high strength alloy, to stainless steel.


    5. Base plate can be easily installed and uninstalled, for workshop and field application.


    6. Three power sources available for different application: Hydraulic Station, Pneumatic, and Electric.



    Technical Specifications:


    Modelworking range(ID-OD)wall thicknessrotation speed
    OCM-159

    Φ50-159(2”-5”)

    ≤30mm

    20r/min
