Oil / Gas Pipe Cutting And Beveling Machine Hydraulic Driving Aluminum Alloy

Oil / Gas Pipe Cutting And Beveling Machine Hydraulic Driving Aluminum Alloy

Production Description:

The Bridge Tool slide accessory is used for facing,counterboring,inside beveling and beveling an open pipe

end,especially for heavy wall thickness pipe.

The slide mounted onto one OD-Mounted machine and "bridge" the end of pipe.

The bridge tool slide uses a single point tool and is available with beveling templates for various form

contours.

Main Features:

1. Each size available for 3 model OD-Mounted machine.

2. Bevel,Compound beveling,Inside beveling,J-Prep,and counterbore.

3. No limit of wall thickness,material:Carbon steel,alloy steel,stainless steel or other pipe.

4. Tool feed automatically.

5. Complete with counterbore/I.D beveling tool,I.D beveling angle available for adjust.

6. Feed wheel,worm wheel and worm covert designed,make operation more safe.

Production Description:

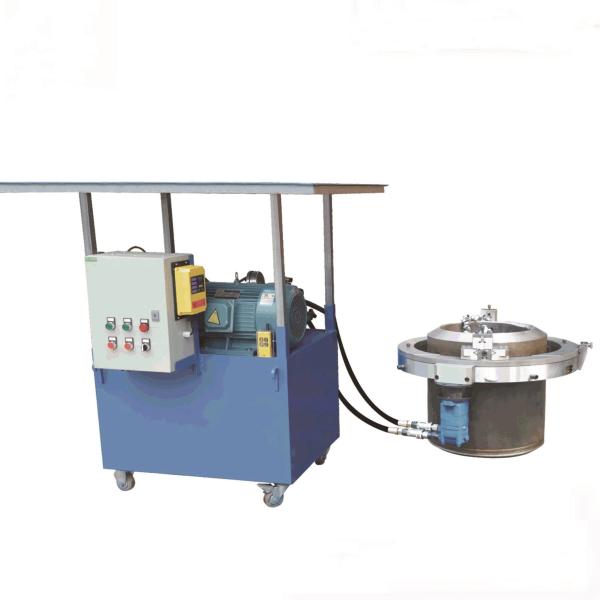

The series machine is ideal for all types of pipe cutting, beveling and end preparation.

The split frame design allows the machine to split in half at the frame and mount around

the OD of the in-line pipe or fittings for strong, stable clamping.

The equipment performs precision in-line cut or simultaneous cut/bevel, single point, counterbore and

flange facing operations, as well as weld end preparation on open ended pipe, Ranging from 3/4” to 56

inches O.D.(DN20-1400), on most wall thicknesses and material.

Main Features:

1. Cold Cutting and Beveling improves safety.

2. Cutting and Beveling simultaneous.

3. Split Frame: easy mounted on pipeline.

4. Tools feed automatically.

5. Fast, Precision, On-site Beveling.

Technical Specifications:

Model	Working Range (ID-OD)		Wall Thickness	Rotation Speed	Air pressure	Air Consumption
OCP-89	Φ25-89	3/4''-3''	≤35	50r/min	0.6MPa	1500 L/min
OCP-159	Φ50-159	2''-5''	≤35	21r/min	0.6MPa	1500 L/min
OCP-168	Φ50-168	2''-6''	≤35	21r/min	0.6MPa	1500 L/min
OCP-230	Φ80-230	3''-8''	≤35	20r/min	0.6MPa	1500 L/min
OCP-275	Φ125-275	5''-10''	≤35	20r/min	0.6MPa	1500 L/min
OCP-305	Φ150-305	6''-10''	≤35	18r/min	0.6MPa	1500 L/min
OCP-325	Φ168-325	6''-12''	≤35	16r/min	0.6MPa	1500 L/min
OCP-377	Φ219-377	8''-14''	≤35	13r/min	0.6MPa	1500 L/min
OCP-426	Φ273-426	10''-16''	≤35	12r/min	0.7MPa	1800 L/min
OCP-457	Φ300-457	12''-18''	≤35	12r/min	0.7MPa	1800 L/min
OCP-508	Φ355-508	14''-20''	≤35	12r/min	0.7MPa	1800 L/min
OCP-560	Φ400-506	16''-22''	≤35	12r/min	0.7MPa	1800 L/min
OCP-610	Φ457-610	18''-24''	≤35	11r/min	0.7MPa	1800 L/min
OCP-630	Φ480-630	20''-24''	≤35	11r/min	0.7MPa	1800 L/min
OCP-660	Φ508-660	20''-26''	≤35	11r/min	0.7MPa	1800 L/min
OCP-715	Φ560-715	22''-28''	≤35	11r/min	0.7MPa	1800 L/min
OCP-762	Φ600-762	24''-30''	≤35	11r/min	0.8MPa	2000 L/min
OCP-830	Φ660-813	26''-32''	≤35	10r/min	0.8MPa	2000 L/min
OCP-914	Φ762-914	30''-36''	≤35	10r/min	0.8MPa	2000 L/min
OCP-1066	Φ914-1066	36''-42''	≤35	9r/min	0.8MPa	2000 L/min
OCP-1230	Φ1066-1230	42''-48''	≤35	8r/min	0.8MPa	2000 L/min

Model	Working Range (ID-OD)		Wall Thickness	Rotation Speed
OCH-89	Φ25-89	3/4''-3''	≤35	100r/min
OCH-159	Φ50-159	2''-5''	≤70	96r/min
OCH-168	Φ50-168	2''-6''	≤70	90r/min
OCH-230	Φ80-230	3''-8''	≤70	85r/min
OCH-275	Φ125-275	5''-10''	≤70	80r/min
OCH-305	Φ150-305	6''-10''	≤70	73r/min
OCH-325	Φ168-325	6''-12''	≤70	70r/min
OCH-377	Φ219-377	8''-14''	≤70	62r/min
OCH-426	Φ273-426	10''-16''	≤70	58r/min
OCH-457	Φ300-457	12''-18''	≤70	55r/min
OCH-508	Φ355-508	14''-20''	≤70	52r/min
OCH-560	Φ400-506	16''-22''	≤70	52r/min
OCH-610	Φ457-610	18''-24''	≤70	50r/min
OCH-630	Φ480-630	20''-24''	≤70	50r/min
OCH-660	Φ508-660	20''-26''	≤70	50r/min
OCH-715	Φ560-715	22''-28''	≤70	48r/min
OCH-762	Φ600-762	24''-30''	≤70	48r/min
OCH-830	Φ660-813	26''-32''	≤70	45r/min
OCH-914	Φ762-914	30''-36''	≤70	41r/min
OCH-1066	Φ914-1066	36''-42''	≤70	32r/min
OCH-1230	Φ1066-1230	42''-48''	≤70	30r/min

Technical Specifications:

Model	working range(ID-OD)	wall thickness	rotation speed
OCH-305	Φ150-305(6”-10”)	≤30mm	13 r/min

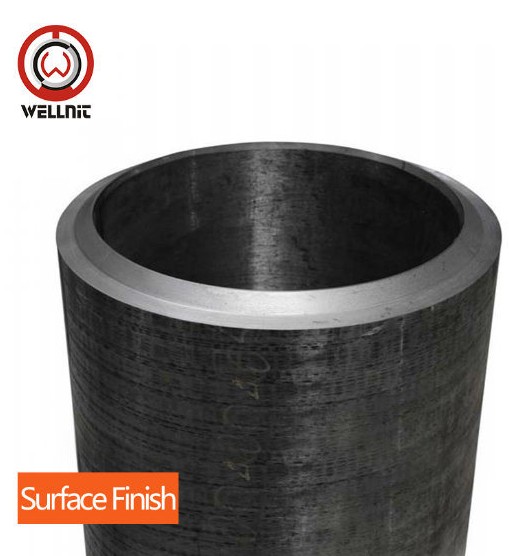

Effect Picture:

Beveling slope is smooth.
