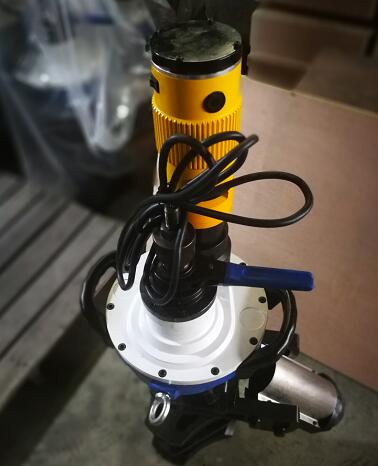

    Tube Cold Process Portable Pipe Beveling Machine Electric Driven 1600W Motor Power

    Ask Lasest Price
    Brand Name : Wellnit
    Model Number : ISM-630-2
    Certification : ISO9001
    Payment Terms : T/T
    Supply Ability : 50 sets for a mounth
    Delivery Time : within 7 days after received 100% payment
    Price : Negotiable
    • Product Details
    • Company Profile

    Tube Cold Process Portable Pipe Beveling Machine Electric Driven 1600W Motor Power

    Tube Cold Process Portable Pipe Beveling Machine Electric Driven 1600W Motor Power

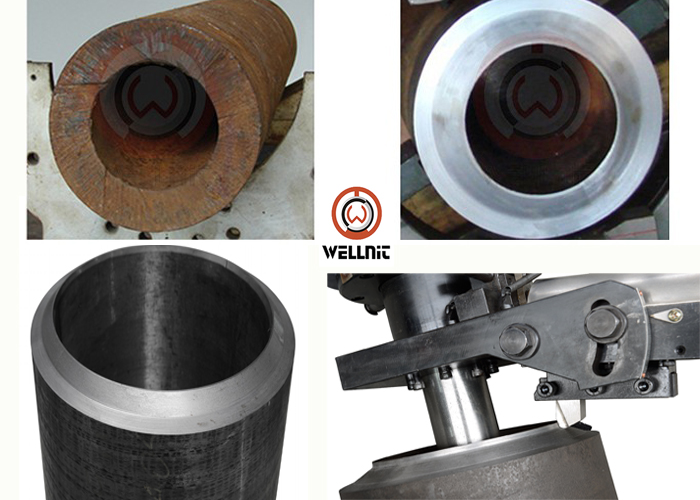

    The ID-Mounted beveling operation utilizes an expandable mandrel which is slid into the open end of the pipe. A draw nut is tightened, which expands the mandrel blocks up a ramp and against the ID surface for positive mounting, self centered and squared to the bore. As the tool bit is fed into the material from the end, a bevel is produced which conforms to the angle predetermined by the angle ground into the bit. Bits are available for practically any material or beveling angle required, and bits can be custom made for any form tooling operation.


    This series is ID Mounted Welding Preparation Pipe Chamfering Tool with the following advantages:
    • Lighter weight,minimal radial space,Easy to operate.
    • A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
    • Driveing Type:Electric-ISE,Pneumatic-ISP.
    • Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
    • Angle:Beveling angle as per your required.

    Technical Parameter


    ISM-630-2 Beveling Machine
    Voltage220-240V
    Frequency50-60Hz
    Power1600W
    Wall Thickness≦75
    Working Range300-630mm
    Rotation Speed10r/min
    Net Weight120kg

    Non-standard machines are available according to customers’requirement.
