    Automatic ISE Electric Pipe Beveling Machine Stable Operation 50Hz / 60Hz

    Ask Lasest Price
    Brand Name : Wellnit
    Model Number : ISE-80
    Certification : ISO9001
    Payment Terms : T/T
    Supply Ability : 50 sets for a mounth
    Delivery Time : within 7 days after received 100% payment
    Price : Negotiable
    • Product Details
    • Company Profile

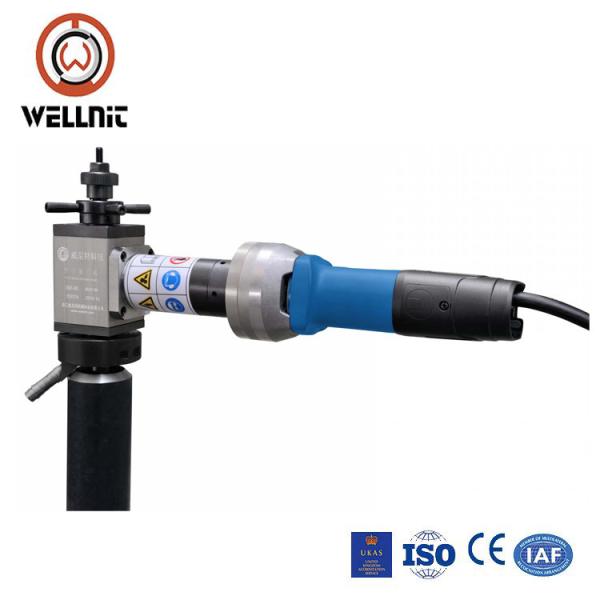

    Automatic ISE Electric Pipe Beveling Machine Stable Operation 50Hz / 60Hz


    Automatic ISE Electric Pipe Beveling Machine Stable Operation 50Hz / 60Hz


    Main performance of the product


    This series is ID-Mounted pipe beveling machine,with the following advantages:Easy operation, light weight and convenient to carry. The ID-Mounted pipe beveling machines use expanding mandrel to holding itself against on the internal surface of pipe via the open end of pipe. A draw nut is tightened,Which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.It's can work with various material pipe,beveling angle as per your required.


    Technical characteristics


    This series is ID Mounted Welding Preparation Pipe Chamfering Tool with the following advantages:
    • Lighter weight,minimal radial space,Easy to operate.
    • A draw nut is tighted,which expands the mandrel blocks up a ramp and against the ID surface for positive mounting,self centered and squared to the bore.
    • Driveing Type:Electric-ISE,Pneumatic-ISP.
    • Can Be Process Diffferent Material Pipe:Carbon Steel,Stainless Steel,Alloy And Ohers.
    • Angle:Beveling angle as per your required.


    Technical Parameter


    ISE-80 Beveling Machine
    Voltage220-240V
    Frequency50/60Hz
    Power1600W
    Wall Thickness≦15
    Working Range28-76mm
    Rotation Speed55r/min
    Net Weight16kg

    Non-standard machines are available according to customers’requirement.
