    Portable Pipe Cutter Gas Welding Accessories Automatic Motor Drive AC220V 50Hz

    Portable Pipe Cutter Gas Welding Accessories Automatic Motor Drive AC220V 50Hz


    CG2-11D Portable Automatic Motor Drive Pipe Cutter Gas Cutting Machine

    Product Description

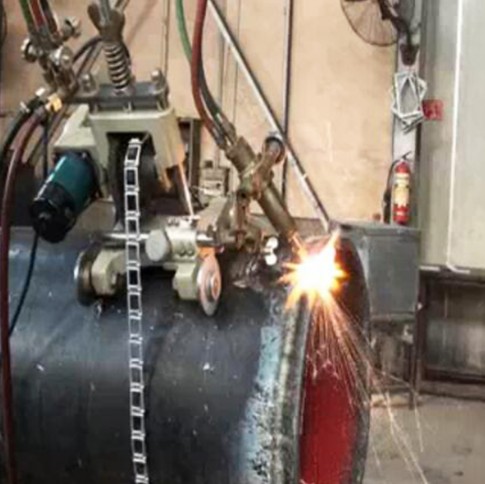

    CG2-11D Automatic Pipe Gas Cutting Machine

    * The body is lightweight and portable.
    * The machine is driven by motor.
    * The machine has a cutting high precision, smooth running characteristics.
    * According to the size of the diameter, free to increase or decrease the chain.


    1. Hose:Connect them to gas distributor.
    2. Sliding support
    3. Cross feeding hand wheel :To adjust horizontal position of torch.
    4. Lift hand knob of torch:To adjust the height of torch.
    5. Torch:The cutting thickness is about 5-50mm
    6. Roller wheel :To make the machine walks smoothly on the pipe wall.
    7. Wing nut:Revolve it to tighten the chain to fix machine on pipe.
    8. Gas distributor:Gases are preheating oxygen, fuel gas and cutting oxygen.
    9. Body 10. Chain


    Technical Parameters

    CG2-11D Automatic Pipe Gas Cutting Machine Specifications:

    Weight(body)

    14.5KG

    Accessory

    1.5KG

    Power

    24V 4AH

    Machine dimension

    165mm×460mm×580mm

    Groove shape

    I shape or V shape (Most angle is 45 degrees)

    Reset accuracy

    1mm

    Diameter of cutting pipe.

    121mm-273mm

    Cutting thickness

    5mm-50mm(Standard torch)

    CG2-11D Automatic Pipe Gas Cutting Machine Contents of package:

    Standard pack

    1) Main body(The hand knobs on two sides are used to assemble backward.

    1set

    2) Standard torch unit assemblage

    1set

    3) Tip (G02 or G03 )

    3pcs each

    4) Gas-in connector

    1set

    5) Connector of torch

    1set

    6) Specification sheets and certificate of qualification

    1pc each
