Light Weight Quick Cut Oxygen Welding & Cutting Equipment For Cutting Metal

Ask Lasest Price
Brand Name :	wellnit
Model Number :	HK-12
Certification :	ISO,CE
Price :	Negotiable

Add to Cart

Product Details
Company Profile

Light Weight Quick Cut Oxygen Welding & Cutting Equipment For Cutting Metal

Light Weight Quick Cut Oxygen Welding & Cutting Equipment For Cutting Metal

Product Description

1. The intergration main boby is made of aluminum of high strength by die-castingmto ensure this machine with a small size,light weight and reliable durability.
2. It is light weight and compact structure to ensure the machine becomes ideal portable machine
3. Speed system adopts mechanical adjustment which can keeps running continuously under high temperature.
4. Advanced motor with fan for cooling.
5. Circular rail can be equipped as required for circular piece cutting(optional)
6. Beveling range:I.Y>V(45°)
7. The machine is widely used to oil production,chemical industry,metal structure and other manufacturers etc.

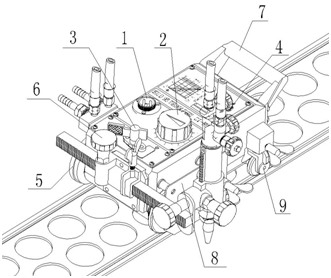

1. Electric outlet: Used for connection of power cable to supply electric power.

2. Speed adjuster: Turn the knob clockwise, and the machine will travel faster.

3. Clutch: The lever operation will stop driving.

4. Drive wheel: Incline the switch in the direction of the arrow to move the machine in that direction.

5. Drive wheel: Engage the clutch (ON) to transmit driving power, and the machine will begin to travel.

6. Torch side handle: This handle adjusts the lateral position of the torch.

7. Handle: Hold the handle to carry the machine. As well as for positioning.

8. Heat shield: The shield protects the machine form the heating flame.

9. Idle wheel

Specifications

1. Weight:	7.5kg
2. One torch with body:	10kg
3. Two torch with body:	14kg
4. Machine size:	350×140×175mm
5. Wheel distance:	160mm
6. Power source:	±10%
7. Reduction gear:	Single cone system
8. Cutting edge sharp:	I,V (45°)
9. Cutting thickness:	6~100mm( by standard accessories)
10. Moter:	1500r.p.m

Accessories

Cabtyrecode:	1set
Tip:	102( for acetylene ) or 106(for propane) #0,1,2,one each
Weigh:	1Pc(two torch set only)
Weigh supporter:	1PC (two torch set only)
Fitting:	1PC (two torch set only)

Order NO.	Model NO.	LWH	Supply Voltage	Da.of.Circle Ctting(mm)	Cutting thickness	Cutting speed	Weight
HW1020	Hk-12	350× 140× 175	AC220/50	Φ290-Φ540	6-100	150-800	10
HW1022	HK-12A	350× 140× 175	AC220/50	Φ910-Φ1160	6-100	150-800	10
HW1030	HK-12MAX-I	600× 175× 228	AC220/50	Φ390-Φ640	6-100	150-800	15
HW1031	HK-12MAX-II	600× 175× 228	AC220/50	Φ1010-Φ160	6-100	150-800	21
HW1032	HK-12MAX-3	430220215	AC220/50	Φ390-Φ640	5-100	80-800	11.5
