    Flame Pipe Intersecting Line Welding Cutting Machine CNC Plasma START Control System

    Ask Lasest Price
    Brand Name : wellnit
    Model Number : XG-800-6
    Certification : ISO,CE
    Supply Ability : 5000 Set/Sets per Month
    Price : Negotiable
    • Product Details
    • Company Profile

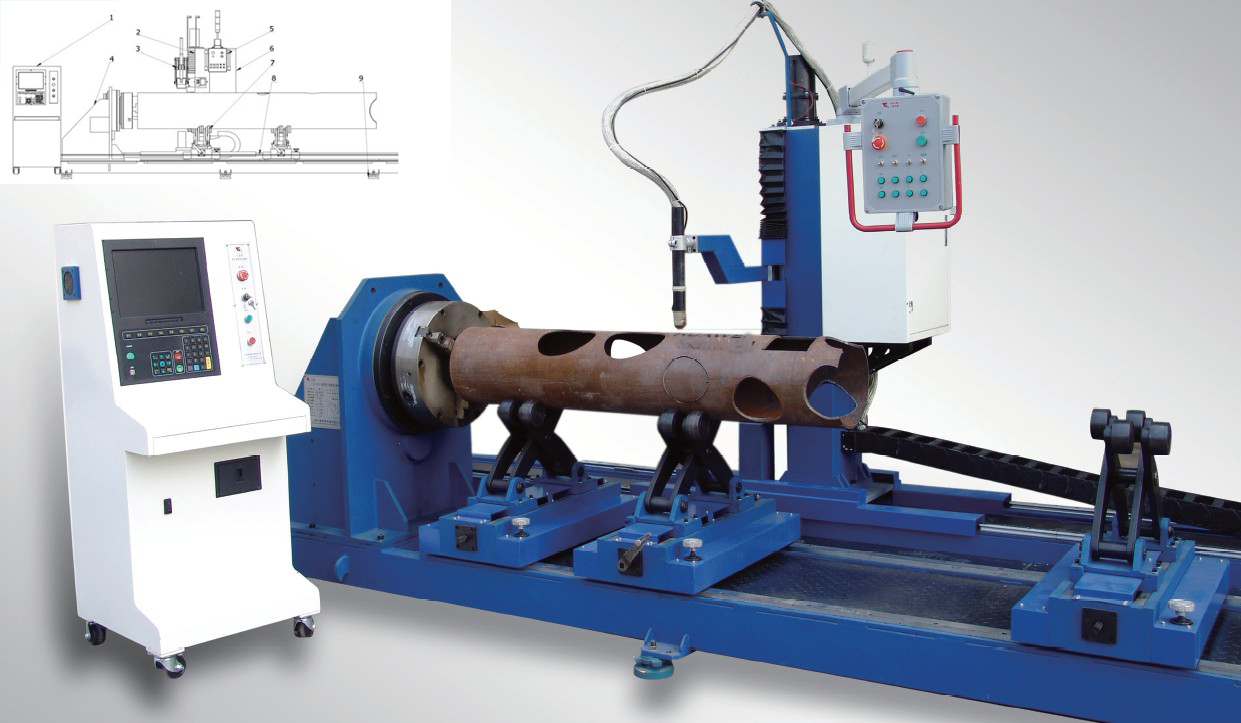

    Flame Pipe Intersecting Line Welding Cutting Machine CNC Plasma START Control System

    Flame Pipe Intersecting Line Welding Cutting Machine CNC Plasma START Control System
    Product Description

    The machine adopts numerical control with 2~7 control shafts according to different requirement to meet working various machine models .we also can renew software and hardware according to user´s need. Each type can realize linkage of control shafts and has functions of cutting different intersecting line, intersecting pore, groove of fixed-angle and groove of fixed-point.


    (1) Tailored track acquires high-intensity, high-speed and high-precision features.
    (2) Human computer interface design makes the machine easy to learn and operate, and have complete functions.
    (3) Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.
    (4) Enable the conversion of the CAD into the program file which can be transmitted to the main machine by USB to cut plate into any shape.
    (5) With two cutting modes: Flame Cutting & Plasma Cutting.
    (6) Chinese, English, French, and Portuguese are ready to use.
    (7) Can automatically memorize and restore when power is off.
    (8) Plasma THC ( torch height control) device function: By automatically adjust the height of the torches
    according to the feedback of the plate height changes, THC can keep good effect of cutting meanwhile,

    protect the torch form damage and prolong life span of the nozzles.
    (9) With status indication device.
    (10) With positioning functions of protection cover, proximity switch and dual-speed.
    (11) Compatibility of the domestic plasma and foreign-brand plasma.


    Model No.Track thicknessEfficient cutting lengthEfficient Pipe DiameterSupply Voltage
    XG-300Q3-503000Φ50-Φ300AC220V/50HZ
    XG-500Q3-506000Φ50-Φ500AC220V/50HZ
    XG-8003-809000Φ60-Φ800AC220V/50HZ
    XG-10003-8012000Φ60-Φ1000AC220V/50HZ

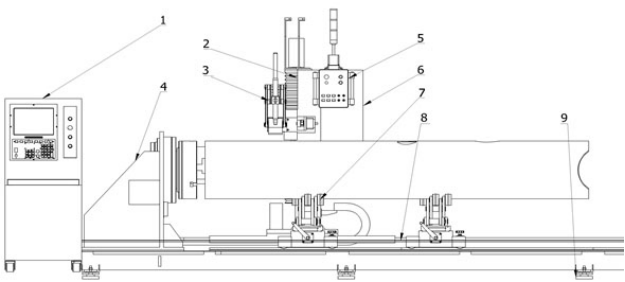

    1 system box 6 high-voltage electrical box

    2 pillar 7 roller frame

    3 torch clamping device 8 lathe bed base

    4 spindle box 9 horizontal adjusting shim

    5 operation box
