    Automatic Marching Steel Plate Edge Milling Machine 4800W AC 380V 50Hz

    Ask Lasest Price
    Brand Name : Wellnit
    Model Number : PB-80
    Certification : ISO9001
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 30 sets a month
    Delivery Time : Within 7days after we received 100% payment
    • Product Details
    • Company Profile

    Automatic Marching Steel Plate Edge Milling Machine 4800W AC 380V 50Hz

    Automatic Marching Steel Plate Edge Milling Machine 4800W AC 380V 50Hz



    Product Introduction


    PB-80 automatic marching milling machine is a dual-motor, power upgrade, automatic steel plate milling


    machine, stainless steel plate, carbon steel plate, aluminum alloy plate and other different materials can


    be used, for large plates, to build a workbench, the machine on both sides of the plate can be carried out


    simultaneously. The machine is easy to operate and can be processed at the same time without manual


    assistance after adjustment. It has high efficiency and saves time and labor costs.


    Technical Parameter



    Model



    PB-80



    Slope Angle



    0°-60°(Adjustable)



    Power



    AC 380V 50Hz


    Clamp Thickness


    6-60mm


    Total



    4800W


    Clamp Width


    〉100mm


    Spindle Speed



    750-1050r/min (adjustadle)


    Process Length


    〉300mm


    Feed speed



    0~1500mm/min (adjustadle)


    Worktable Height


    820-860mm


    Milling Width



    0-70mm


    Net Weight


    220kg


    Single Milling


    Width



    15-20mm


    Processing Materials


    Carbon Steel


    Stainless Steel


    Aluminium Alloy , Etc


    Main performance of the product


    1. The PB-80 edge milling machine convenient movement and simple operation.


    2. The finish of the groove is as high as Ra3.2-6.3.


    3. The milling machine is equipped with commonly used CNC blades to make the


    customers use the cost more cheaply.

    Details of Product

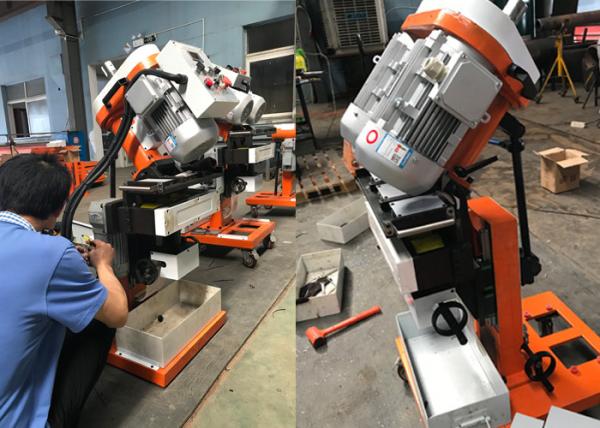

    The plastic handle in the picture is used to adjust the height of the machine, adjust the handle, and


    contact the rubber wheel with the upper part of the steel plate.


    On the control panel, there are spindle switch, feed switch, spindle speed, feed speed, power indicator


    and emergency stop.


    Operation procedure:


    One Step: turn on the power.


    Second Step: turn the spindle switch to ON, and the feed switch rotates to L.


    Third step: start the spindle speed to 1300, and feed speed to 300.


    After the plate is completely pressed, the feed rate and feed speed can be adjusted according to the


    sound of the motor.
