1. Feed torque is improved again,More stable processing
performance,The smooth finish of the groove
reaches Ra3.2-6.3
2. The groove angle of the equipment can be adjusted freely between
30° and 60°.
3. easy to use,Easy to learn,Ordinary workers can operate multiple
devices at the same time
4. Single maximum slope width 10mm,Up to 18mm multiple times
5. Milling cold working method,The processed groove surface is not
oxidized,Stainless steel groove can
be welded without pickling
6. Can be processed for small and medium plates,Knife tray with 4
blades,Each group can process 800-
1200m,Very low consumables
| PB-10D |
| Power Supply | AC 380V 50HZ |
| Power | 2600W |
| Spindle Speed | 1440r/min |
| Feed Speed | 0~1500mm/min(Adjustable) |
| Bevel Width | 1~18mm |
| Maximum Milling Width | 10mm |
| Bevel Angle | 15°~75°(Adjustable) |
| Clamp Thickness | 2~40mm |
| Clamp Width | >20mm |
| Net Weight | 80Kg |
| Processing Materials | Carbon Steel, Stainless Steel, Aluminium Alloy, Etc |
|
Product description and main performance

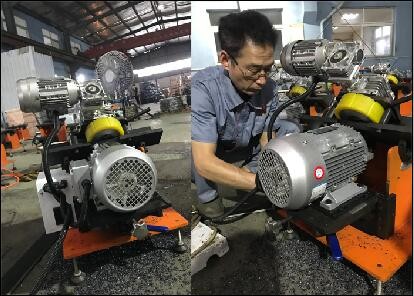

This machine is also called stationary edge milling machine, mainly
using the milling principle of small
plates need large groove milling edge and dedicated to the
development of new products. Table edge
milling machine product single processing edge milling width of 10
mm, the maximum processing to 18mm
edge width. Compared with the general machine type, the processing
capacity of table milling edge
machine is unmatched by other machine types. The machine
innovatively USES the rolling driven wheel
device, which eliminates manual piling, and the material can be
self-feeding after entering the material
port, making the feeding easier when the machine works. Applicable
to common structural steel, stainless
steel, cast iron, hard plastics, non-ferrous metals and other
materials. It is a special tool for cutting edge
of welding front end face. This machine has the advantages of
smooth surface, easy to use, low labor
intensity, high efficiency and low cost. It solve that problems of
flame cut, grinding of polishing machine,
large-scale milling machine, etc., the product is cheap and
beautiful, and the small machine can be used
as the best partner in the edge milling operation of your small
material
